Stainless Steel (Japan Type) Bow Shackle
Decorstainless International Co., Ltd.- Material：Stainless Steel
- Shape：U Shape
- Usage：Marine, Outdoor, Household, Connection
- Color：Silver
- Condition：New
- Surface Treatment：Highly Polished or Hot Dipped,Electro Galvanized
Base Info
- Model NO.：DECOR
- Rigging Hardware：Bow Shackle
- Design：OEM Services Provided
- Advantage：Fast Delivery
- Drawing：CAD
- Sizes：From 4mm to 75mm
- Type：Japan
- Certification：SGS&TUV
- Brand：Decor
- Service：One Stop Shopping
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：From 4mm to 75mm
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：10, 000PCS,Month
Description
Product Name
Stainless Steel Bow Shackle
Material
stainless steel 316 or 304 or carbon steel
Surface finish
Highly Polished or hot dip galvanized or electro galvanized
Color
Nickel White
Standard

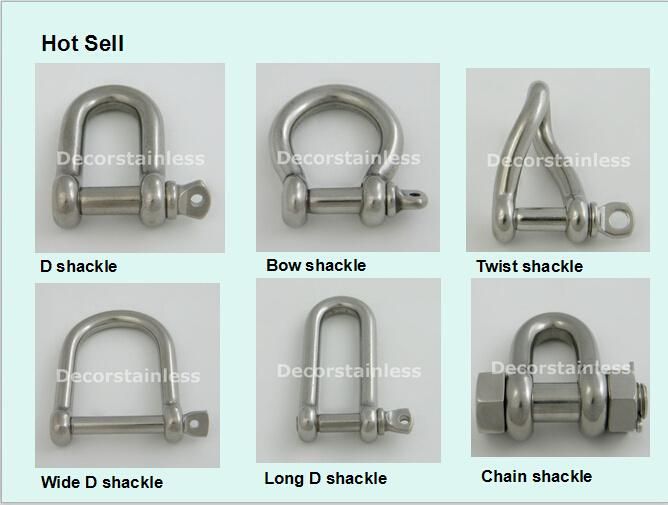

D shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Type
DIN Type, European Type, Japan Type And US Type
Used
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
| Dimension | Size A | B | C | D |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 4 | 4 | 4 | 8 | 19 |
| 5 | 5 | 5 | 11 | 24 |
| 6 | 6 | 6 | 12 | 27 |
| 8 | 8 | 8 | 17 | 37 |
| 10 | 10 | 10 | 20 | 45 |
| 12 | 13 | 13 | 26 | 59 |
| 16 | 16 | 16 | 32 | 76 |
| 20 | 19 | 19 | 38 | 85 |
| 22 | 22 | 22 | 44 | 98 |
| 25 | 25 | 24 | 50 | 112 |
| 32 | 32 | 31 | 64 | 138 |
