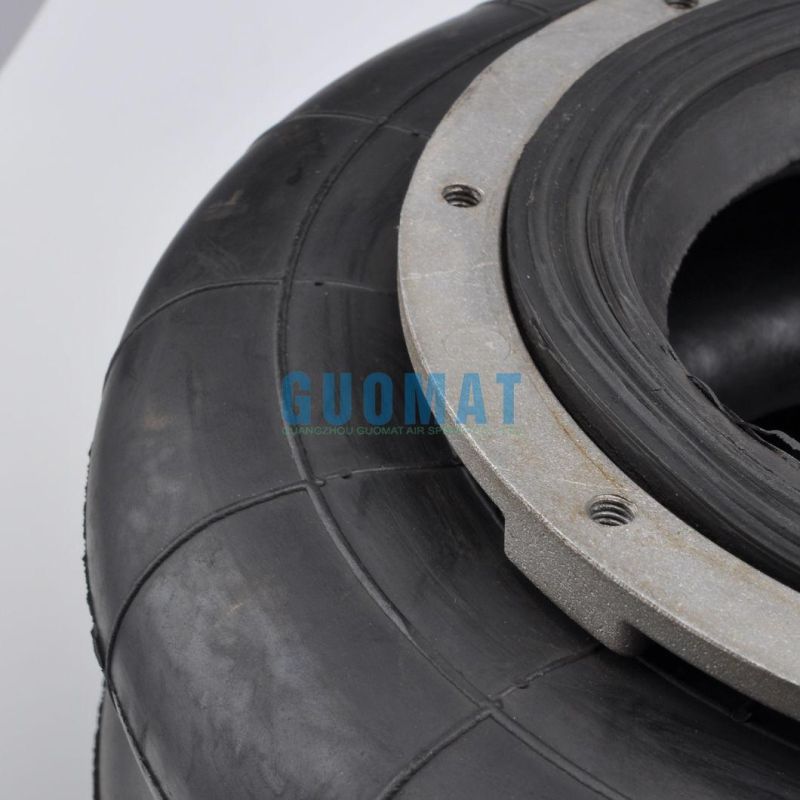

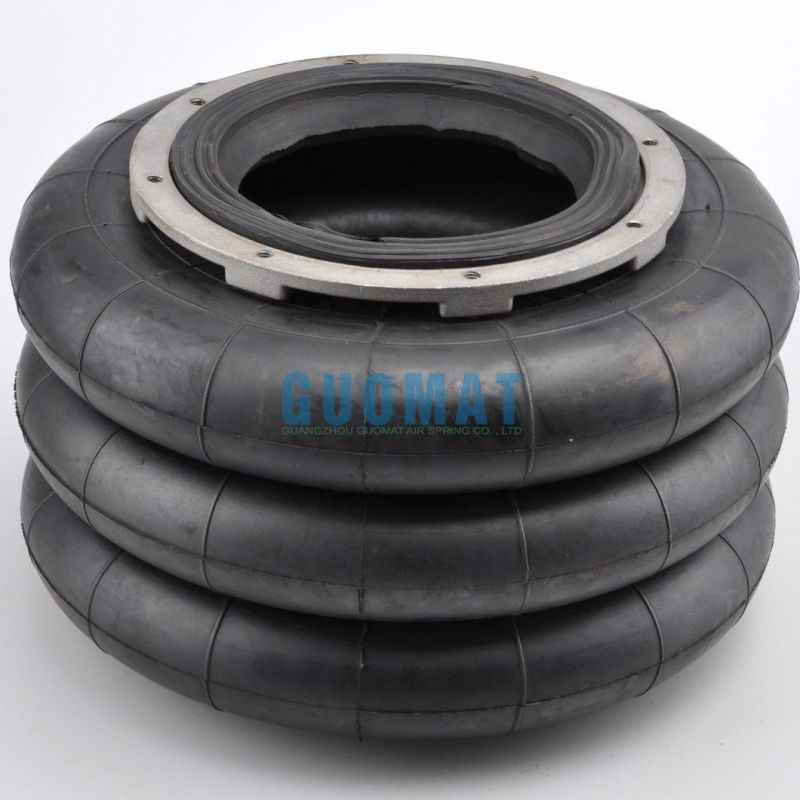

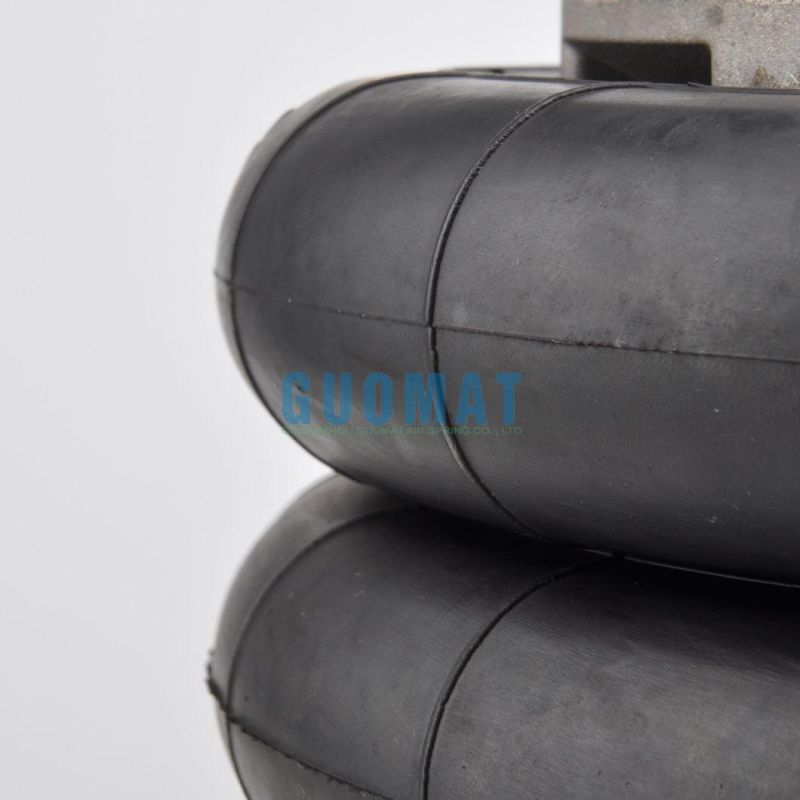

10X3 Dunlop Sp159 Triple Convoluted Air Spring Actuator Refer to Contitech FT 210-32 Stroke 230mm
Guangzhou Guomat Auto Parts Co., Ltd.- Function：Reduce Vibration
- Material：Rubber and Aluminum
- Usage：Industrial
- Load Type：Compression
- Production Process：Vulcanization
- Shape：Convoluted
Base Info
- Model NO.：10X3
- N.W.：3.5 Kg
- Warranty：One Year
- Pressure Ability：0.2-0.8 M PA
- Maximum Diameter：256 mm
- Transport Package：Cartons
- Specification：27*27*24 cm
- Trademark：Neutral
- Origin：China
- HS Code：8708809000
- Production Capacity：5000PCS,Month
Description
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
Nut / Blind Nut - As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
Gas Hole / Air inlet / Air Fitting - Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides - 65F functional properties.
Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
