Basic Info.

Model NO. CD Payment T/T L/C Delivery Time 20-40 Days Transport Package Carton/Wooden Box/as Request Specification steel Trademark Deso Origin China Mainland HS Code 82041100 Production Capacity 500000PCS/Year

Product Description

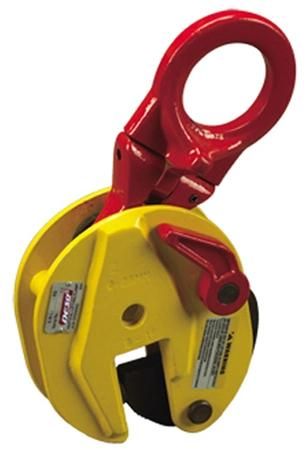

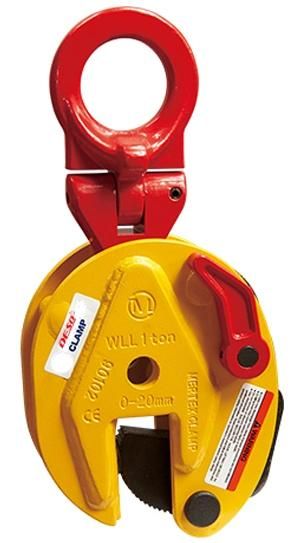

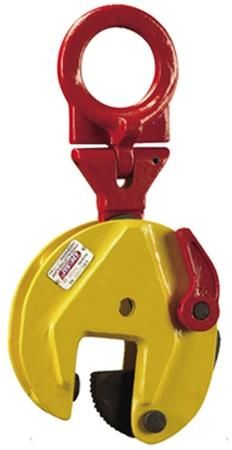

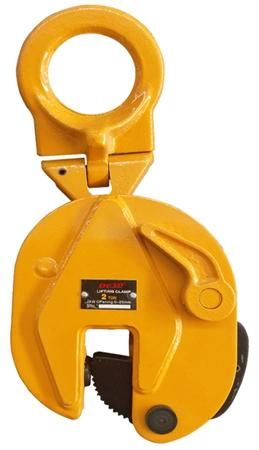

CD Type Clamp (Vertical)



* For lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong).
* Articulated lifting shackle.
* CD lifting clamps are equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
* The clamp is locked in closed as well as in open position.
* Minimum W.L.L. is 10 % of the maximum W.L.L.
* Material: High quality Alloy steel or low carbon alloy steel
* Work loading: 0.5-30T
* Drop forged alloy steel quenched and tempered
* Used in pairs, 2 or 4 pieces work together
* Forged head and forged gear set ensure the durability and safety
* Test load is the maximum operation load of 2 times
* Adjustable to fit a wide range of widths and beams

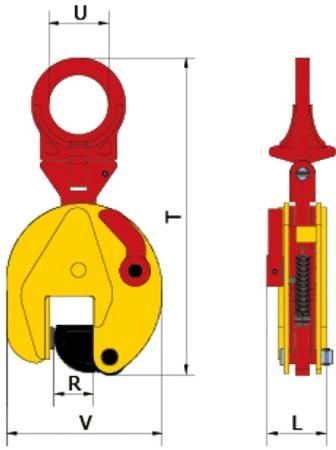

Model	Jaw Opening (mm)	Load Capacity (kg)	T (mm)	U (mm)	V (mm)	L (mm)	Net Weight (kg)
CD-0.5	0~15	500	205	30	105	48	2
CD-1	0~20	1000	300	50	145	66	5
CD-2	0~25	2000	385	68	175	75	8
CD-3.2	0~30	3200	430	75	215	102	15
CD-5	0~50	5000	500	68	232	112	23
CD-8	0~45	8000	600	88	290	125	37
CD-12	50~90	12000	700	90	420	128	50
CD-16	60~100	16000	710	100	445	128	65
CD-20	0~80	20000	948	100	563	140	160
CD-30	10~90	30000	944	100	568	142	167

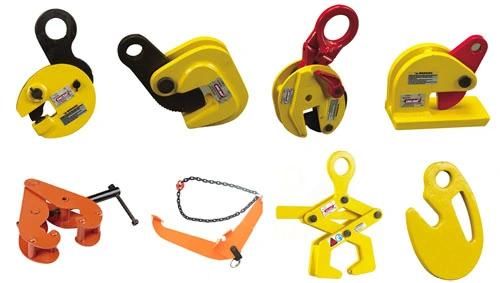

Related Products
