• Model NO.：1,4-5,16, 5,16-3,8, 3,8-1,2, 1,2-5,8 inch
• Name：Ra Load Binder
• Color：Red, Blue, Yellow, etc
• Style：Ratchet
• Packing.：Carton and Iron Pallet, Iron Pallet
• Transport Package：Carton and Iron Pallet, Iron Pallet
• Specification：1,4-5,16, 5,16-3,8, 3,8-1,2, 1,2-5,8 inch
• Trademark：thinkwell
• Origin：China
• HS Code：73269090
• Production Capacity：2000 Pieces,Month

Basic Info.

Model NO. 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 inch Name Ra Load Binder Color Red, Blue, Yellow, etc Style Ratchet Packing. Carton and Iron Pallet, Iron Pallet Transport Package Carton and Iron Pallet, Iron Pallet Specification 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 inch Trademark thinkwell Origin China HS Code 73269090 Production Capacity 2000 Pieces/Month

Product Description

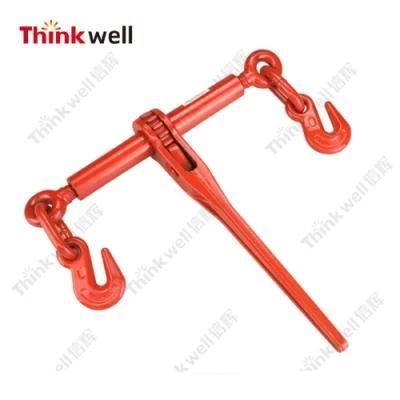

Forged Lever Type Load Binder/Ratchet Type Load Binder

Material: Carbon steel,
Handle: Forged
Size: 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 inch
Fitting for chain
Finish: Painted Color ,H. D. G., electro galvanized, ghosphated, self-colored also avaliable
Treatment: Forged,
Packing: Carton and Iron Pallet, Iron Pallet

Each handle carries the following markings(as needed):
- chain diameter, for which the load binder is suitable;
- manufacturer's symbol
- not for lifting or hoisting applications;
- Lashing Capacity;
- minimum breaking load.
Safety factor: MBL equals 2 x Lashing Capacity
Certification: Test certificates can be supplied upon request
Customized requirements are welcome!
Origin: China
FOB port: Qingdao
Lead time: 15~45 days
Standard: CE, ISO
Main export market: US, Australia, European countries, India



Part No.	Min-Max Chain Size (in.)	Workin g Load Limit (lbs.)	Proof Load (lbs.)	Ultimat e Load (lbs.)	Weight Each (lbs.)	Handle Length (in.)	Take Up (in.)
TKH001	1/4-5/16	2200	4400	7800	3.52	11.42	3.75
TKH002	5/16-3/8	5400	10800	19000	7.02	16.00	4.50
TKH003	3/8-1/2	9200	18400	33000	12.47	18.69	4.50
TKH004	1/2-5/8	13000	26000	46000	19.68	21.00	4.75

Qingdao ThinkwellHardware & Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.

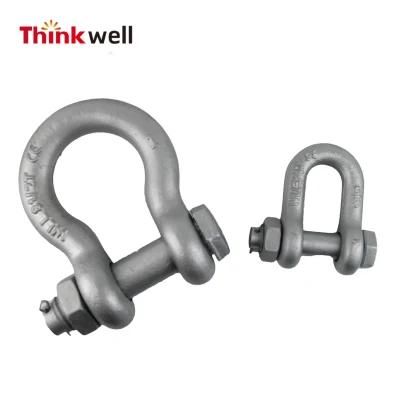

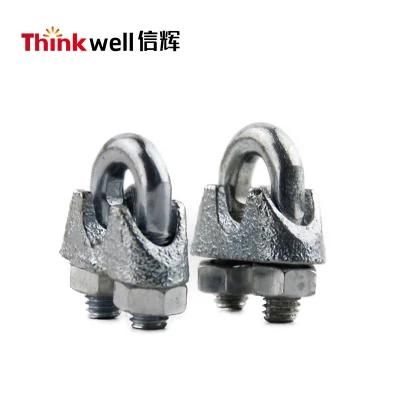

Main products also comprise Chains, Hooks, Shackles, Turnbuckles, Wire rope clips, Load binders and other rigging hardware accessories.
Our Service, Your Safety!
You are more than welcome to our factory!

our advantages:
1 Quick response: all inquiries responded within 12 hours
2 experience: reliable supplier & over 20 years in manufacturing rigging hardware, exported to over 50 countries
3 Timely delivery: from mold to samples within 10 days
4 Certification: CE, ISO, products test reports provided on request, control for each product
5 Strong ability for R&D
6 Transportation: close to Qingdao Port & Airport, providing great advantages to trade
7 Competitiveness: high-quality and the lowest ex-factory prices with a wide range of shipping ways
8 no MOQ limit, customers' special need is welcomed
Our creed: better because of Specialization

Welcome to our factory for a visit
