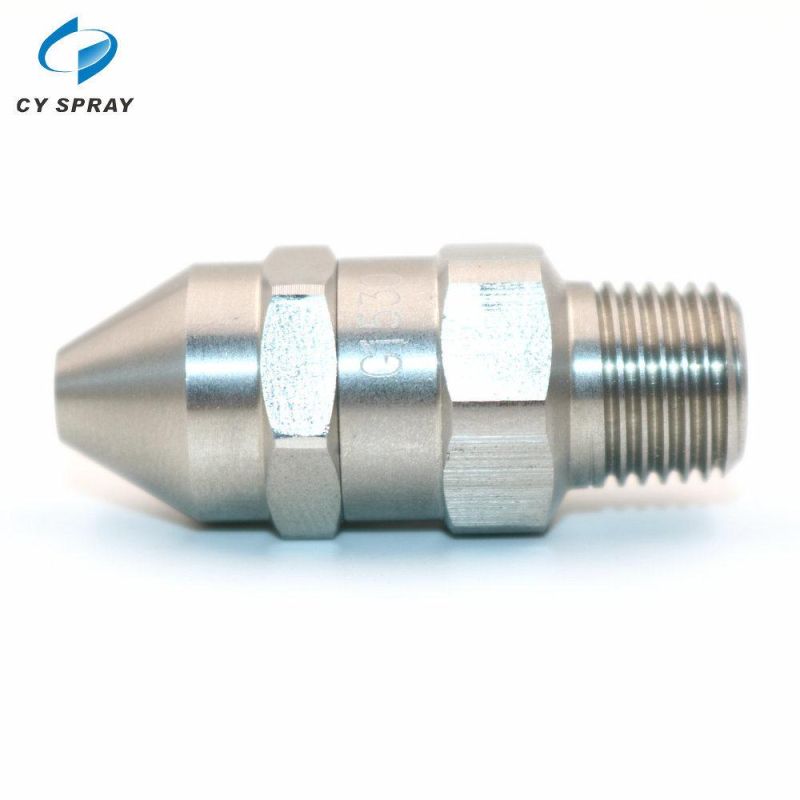

15degree or 30 Degree Metal Narrow Angle Full Cone Water Spray Nozzle
CY Spraying & Purification Technology Limited- Spray Angle：15 and 30
- Size：1,8 1,4 3,8 1,2 3,4 1 1-1,4 1-1,2 2 2-1,2
- Brand Name：Cy Spray
- Spray Pattern：Full Cone
- Application：Cleaning and Washing
- MOQ：50PCS
Base Info
- Model NO.：GG
- Flow Rate：0.32-7130 L,Min
- Product Name：Narrow Angle Nozzle
- Working Pressure：0.7-20bar
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Specification:
1. Narrow spray ,spray angle:15gree ,30degree
2. Spray pattern: Full cone
3. Material: Stainless Steel 303; Stainless Steel 304; Stainless Stell 316; and Brass
4. Thread size: 1/8" to 2" BSPT or NPT (Female thread)
5. Working Pressure: from 0.5bar to Dozens of bar; Usually, nozzles will spray perfectly under 3bar or larger pressure.
6..Narrow angle nozzle with fine manufacturing process, to achieve a precise specifications, to ensure the best performance.Novel blade design and large flow channel and excellent control characteristics of the jet spray distribution uniformity,
7.G series Jet Nozzle has removable cap and vane
