Stainless Steel Thread Stud Swageless Terminal
Decorstainless International Co., Ltd.- Material：Stainless Steel
- Type：Thread Stud
- Usage：Marine, Outdoor, Household, Connection

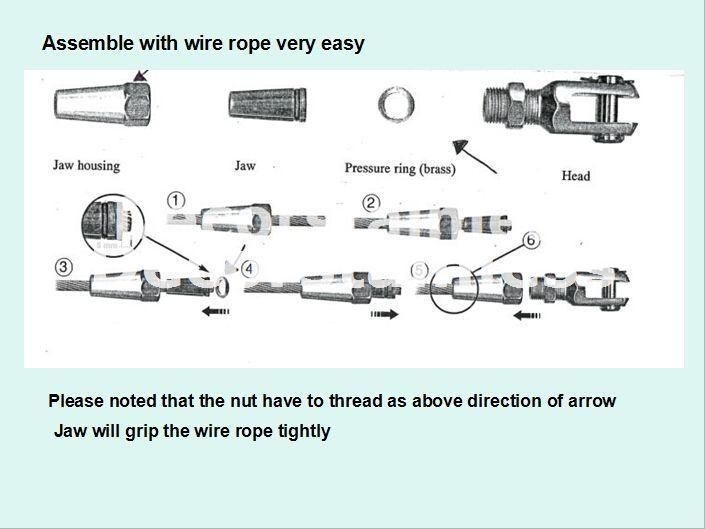

- Installation：Assemble with Wire Rope
- Condition：New
- Advantage：Quick Installation Without Any Tools
Base Info
- Model NO.：DECOR
- Color：Silver
- Design：OEM Services Provided
- Brand：Decor
- Size：From M5*3mm to M16*8mm
- Drawing：CAD
- Production Equipment：Latest CNC Machine
- Service：One Stop Shopping
- Certification：SGS&TUV
- for Wire Rope：3,4,5,6,7,8mm
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：From 5x3mm to 16x8mm or as Per Your Requests
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：1, 000, 000PCS,Month
Description
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends.
| Dimension | Size A | L1 | L2 | D1 |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 5*3 | 5 | 79 | 42 | 3 |
| 6*3 | 6 | 85 | 47 | 3 |
| 6*4 | 6 | 92 | 47 | 4 |
| 8*5 | 8 | 111 | 57 | 5 |
| 10*5 | 10 | 117 | 63 | 5 |
| 12*6 | 12 | 145 | 80 | 6 |
| 14*7 | 14 | 162 | 89 | 7 |
| 14*8 | 14 | 171 | 89 | 8 |
| 16*8 | 16 | 182 | 100 | 8 |
