Stainless Steel Double Thread Stud
Decorstainless International Co., Ltd.- Material：Stainless Steel
- Type：Double Thread Stud
- Usage：Marine, Outdoor, Household, Connection
- Installation：External
- Condition：New
- Color：Silver
Base Info
- Model NO.：DECOR
- Surface Treatment：Highly Polished or Hot Dipped,Electro Galvanized
- Turnbuckle：Thread Stud
- Design：OEM Services Provided
- Advantage：Fast Delivery
- Drawing：CAD
- Size：From M5 to M20
- Production Equipment：Latest CNC Machine
- Certification：SGS&TUV
- Service：One Stop Shopping
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：From M5 to M20 or as Per Your Requests
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：100, 000PCS,Month
Description
Product Name
Stainless steel Double Thread Stud
Material
stainless steel 316 or 304
Surface finish
Highly Polished
Color
Nickel White
Standard
Metric and UNF
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Thread
coarse, fine
Used

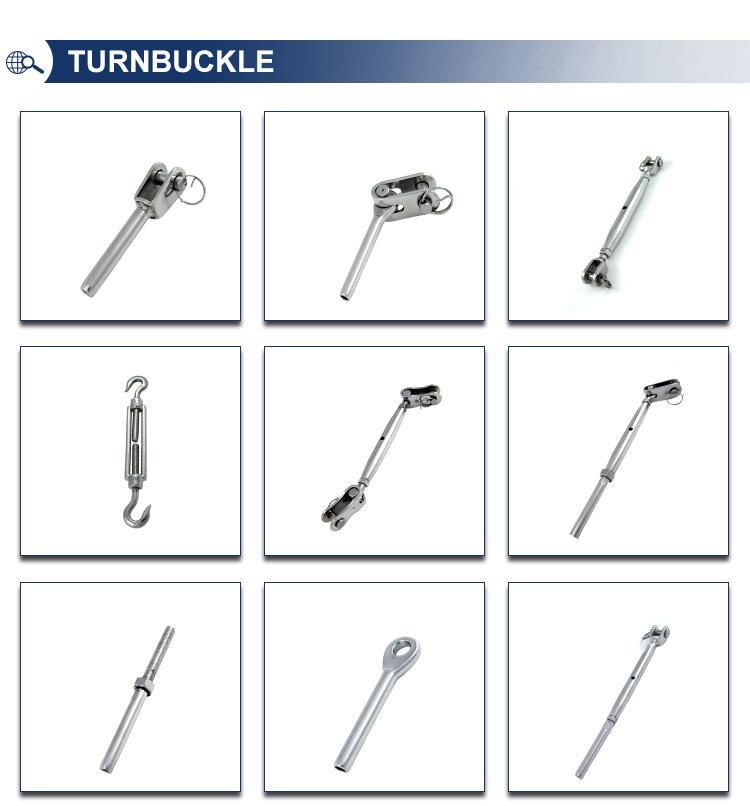

These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends.
| Dimension | G | L | L1 |
| (mm) | (mm) | (mm) | (mm) |
| M5 | M5 | 60 | 25 |
| M6 | M6 | 70 | 25 |
| M8 | M8 | 80 | 35 |
| M10 | M10 | 100 | 40 |
| M12 | M12 | 120 | 45 |
| M14 | M14 | 140 | 50 |
| M16 | M16 | 160 | 60 |
| M18 | M18 | 180 | 70 |
| M20 | M20 | 200 | 80 |
