• Model NO.：Anchoring Bracket universal hook
• Customized：Customized
• Color：Silver
• Brand Name：L&R or as Per Clients′ Requirements
• Transport Package：Export Standard Package or as Client Requirement
• Specification：ISO9001: 2008
• Trademark：L&R or according to customer′s requirement
• Origin：Wenzhou, Zhejiang
• Production Capacity：20, 000PCS,Month

Basic Info.

Model NO. Anchoring Bracket universal hook Customized Customized Color Silver Brand Name L&R or as Per Clients′ Requirements Transport Package Export Standard Package or as Client Requirement Specification ISO9001: 2008 Trademark L&R or according to customer′s requirement Origin Wenzhou, Zhejiang Production Capacity 20, 000PCS/Month

Product Description

Origin: Yueqing, Wenzhou, Zhejiang, China
Brand name: L&R or  as customized
Usage: Projector Bracket, shelf bracket, wall bracket, TVbracket, air conditioner bracket
Material: Aluminium Alloy
Size: Sm 96, sm 97, sm 81,sm 82, sm 83
Structure: Suspension Clamp
Export market:Global

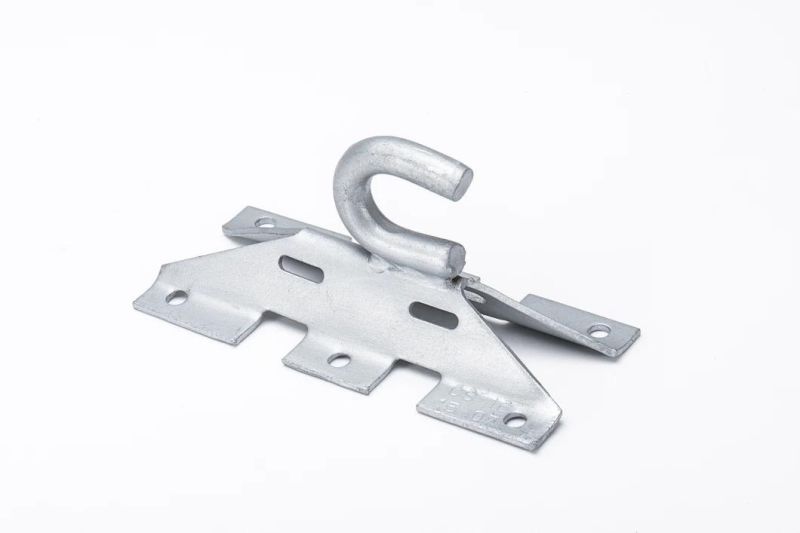

One suspension bracket CA1500 or CA2000 provides suspension of one or two clamps for aerial bundle cables on a pole or wall of a building. Fastening is done using two M14 or M16 bolts or with two pieces of metal tape 20mm wide. The provided stops prevent the metal tape from sliding off. The delimitting grooves exclude overlapping of the tape turns. The bracket is made of cast aluminum alloy with high mechanical strength and resistance to corrosion under industrial pollution conditions.
Suspension brackets CA25 are intended for fastening anchor and intermediate clamps on a pole or wall of a building. They can be mounted with M12 and M14 bolts or using 20mm metal tape. If tape is used it passes through a special slot eliminating possibility of incorrect installation. The brackets are made of aluminium alloy with good mechanical and environmental stability.

Product name	Beaking load. kgf	Net weight.kg	Order code
Suspension bracket CA 1500	1500	0.23	ca-1500
Suspension bracket CA 2000	2000	0.35	ca-2000
Suspension bracket CA25	300	0.02	ca-25

Our services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & casting services
4. Factory direct price
5. Strict quality control
6. We warmly welcome you to visit our factory and seek further cooperation

Our products have been serving for power system of more than 20 countries. We have been focusing on Electric power for more than 20 years.
Hope we can establish good relationship in the future. We will supply professional and good service to you in the first time.
