• Model NO.：PL
• Color：Multi-Colored
• Working Load Limit：55.4t
• Inside Min：7.5mm
• Colour：Black
• Grade：80
• Transport Package：Wooden Case, Steel Drum
• Specification：CE GS ISO9001
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. PL Color Multi-Colored Working Load Limit 55.4t Inside Min 7.5mm Colour Black Grade 80 Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

Production info as belows:

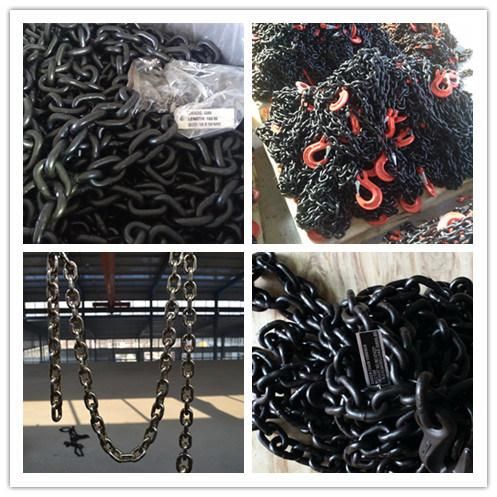

High strength 22mm G80 Steel Chain Black Chain

Size: 6mm-42mm

Material: Alloy steel,

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Color: Self color, black

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

The chains technical specifications as belows:

Size(mm)	Min inside width	Max outside width	Weight(kg/m)	working load(KN)	test load(KN)	test load(KN)
6*18	7.5	21	0.79	11	27	45.2
7*21	9	24.5	1.07	15	37	61.6
8*24	10	28	1.38	20	48	80.4
9*27	11.5	30	1.9	24.5	61	102
10*30	12.5	35	2.2	32	76	125
12*36	15.5	42.2	3.3	49	117	196
13*39	16.3	46	3.8	50	128	214
14*42	18	49	4.13	63	150	250
16*48	20	56	5.63	80	192	320
18*54	23	63	6.85	100	246	410
20*60	25	70	8.6	125	300	500
22*66	28	77	10.5	153	366	610
24*72	32	82	12.78	180	432	720
26*78	35	91	14.87	213	510	650
30*90	38	105	19.6	283	678	1130
32*96	40	106	22.29	322	772	1289
34*102	46.5	121.5	25.5	363	870	1450
36*108	49.5	128.5	31	407	978	1630
38*114	52	136	32	453	1086	1810
42*126	55.5	144.5	38.6	554	1332	2200

Factory pic as belows:

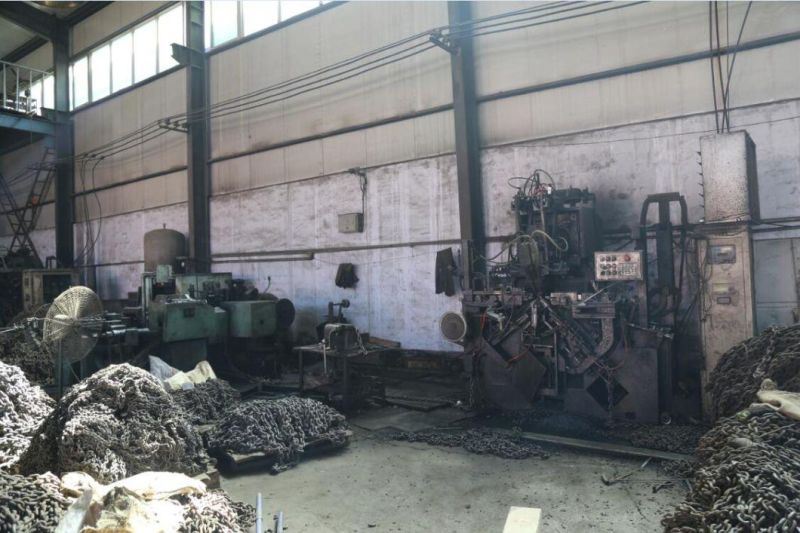

Welding machine:

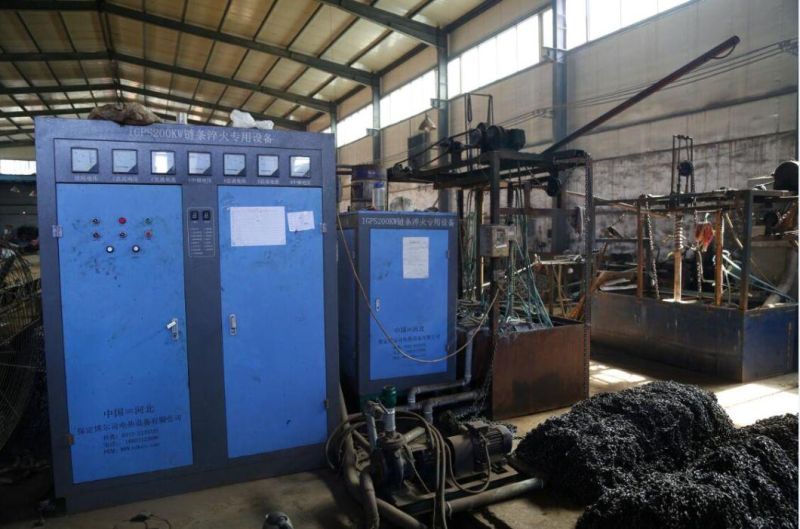

Heat treatment:

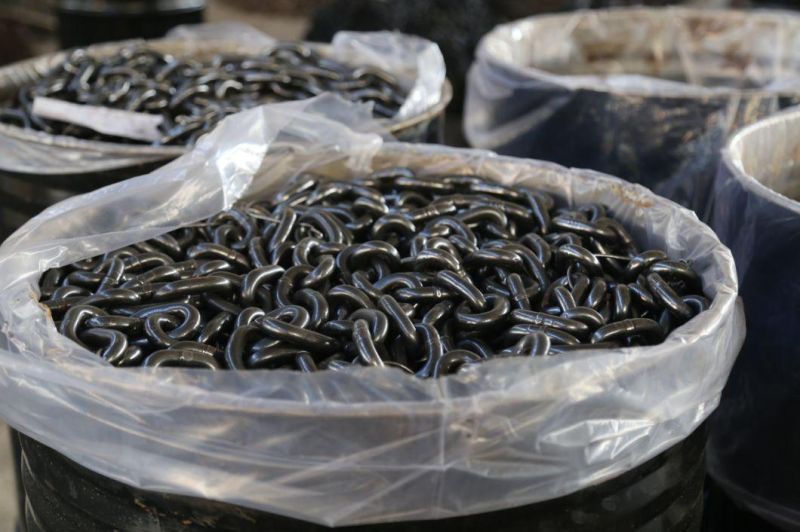

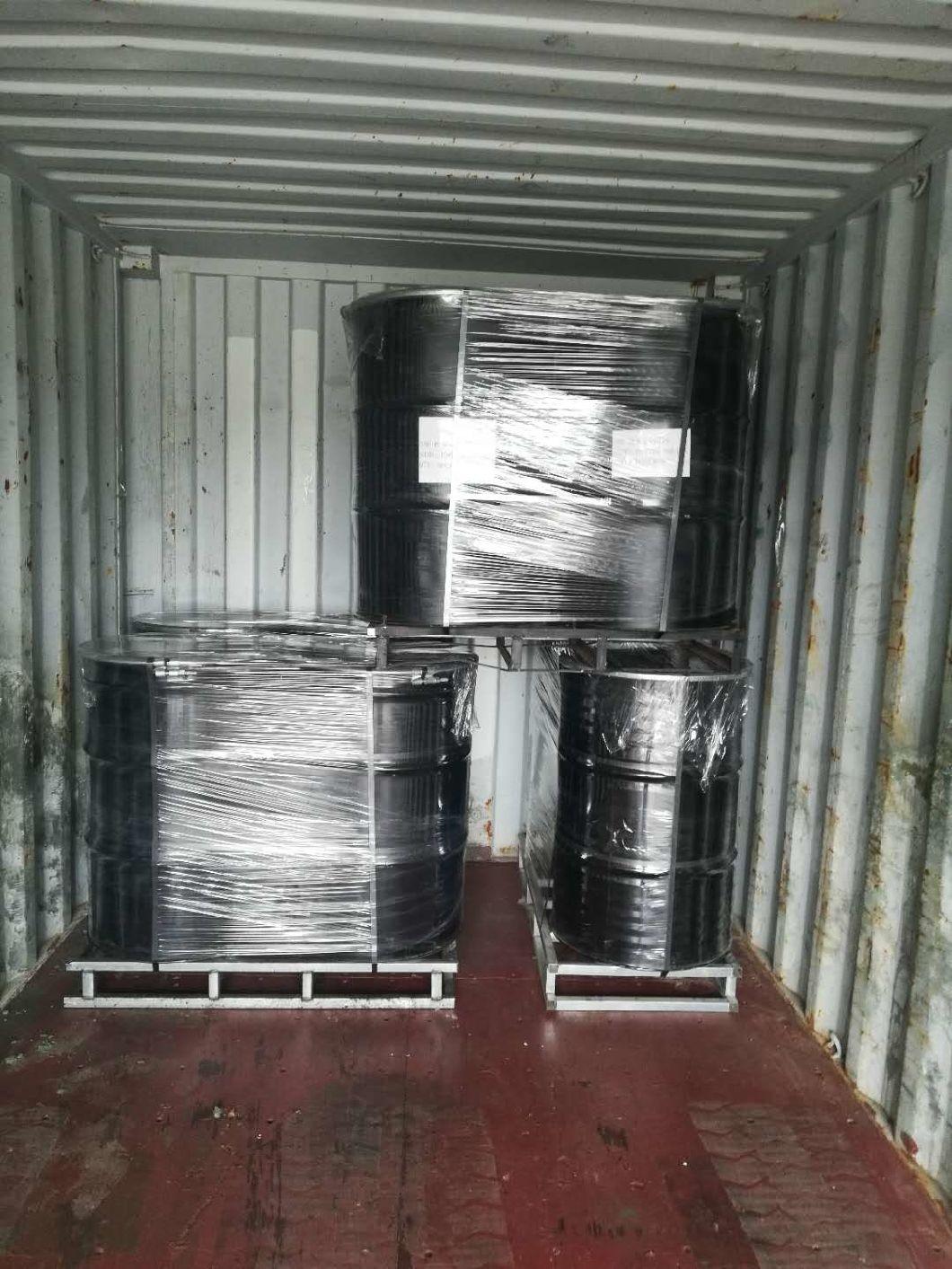

Packing pic as belows:You can select gunny bag, ton bag, wooden case or iron drum packing



For any inquiry please feel free to contact us 008615930701937
