• Model NO.：SM
• Feature：High Flow Rate
• Brand Name：Cy Spray
• MOQ：20PCS
• Spray Angle：30 ,60 ,90 ,120 Degrees
• Transport Package：Standard Export Carton
• Specification：CE, ISO
• Trademark：CY SPRAY
• Origin：Dong Guan, China
• HS Code：84249090
• Production Capacity：1000PCS Per Day

Basic Info.

Model NO. SM Feature High Flow Rate Brand Name Cy Spray MOQ 20PCS Spray Angle 30 ,60 ,90 ,120 Degrees Transport Package Standard Export Carton Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per Day

Product Description

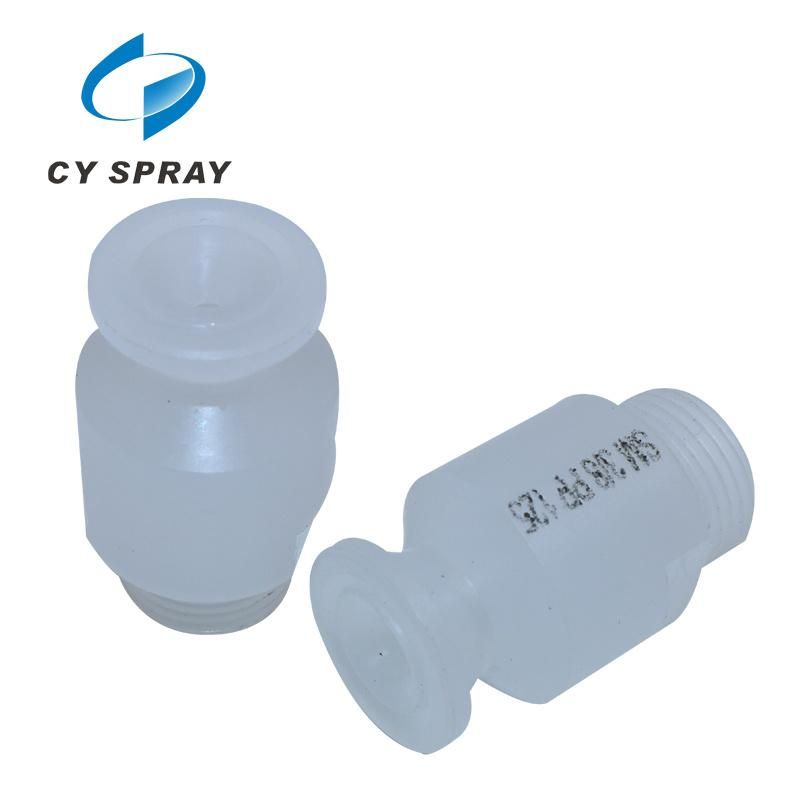

Large Flow Rate Solid Cone Nozzle Nozzle, Full Cone Spray Nozzle










           SS high flow rate full cone anti-blocking water spray nozzle

Product name:  SS high flow rate full cone anti-blocking water spray nozzle

Material:  ss

Application: cooling ,cleaning,dust removal,quenching etc.

Spray pattern: full cone

Thread size:  3/8",1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3"

Spray angle: 30  ,60  ,90  ,120 degrees

Feature: high flow rate


Description

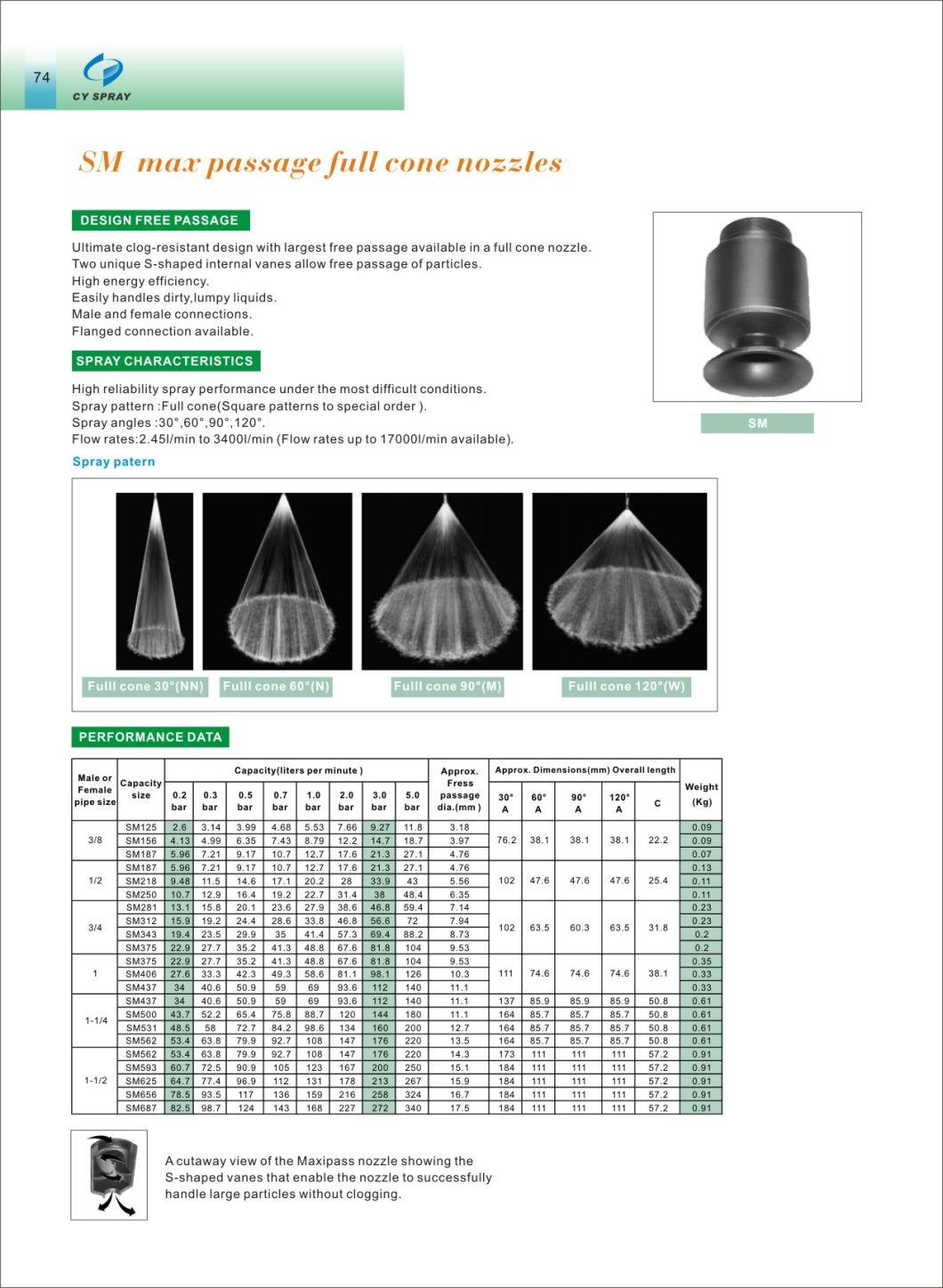

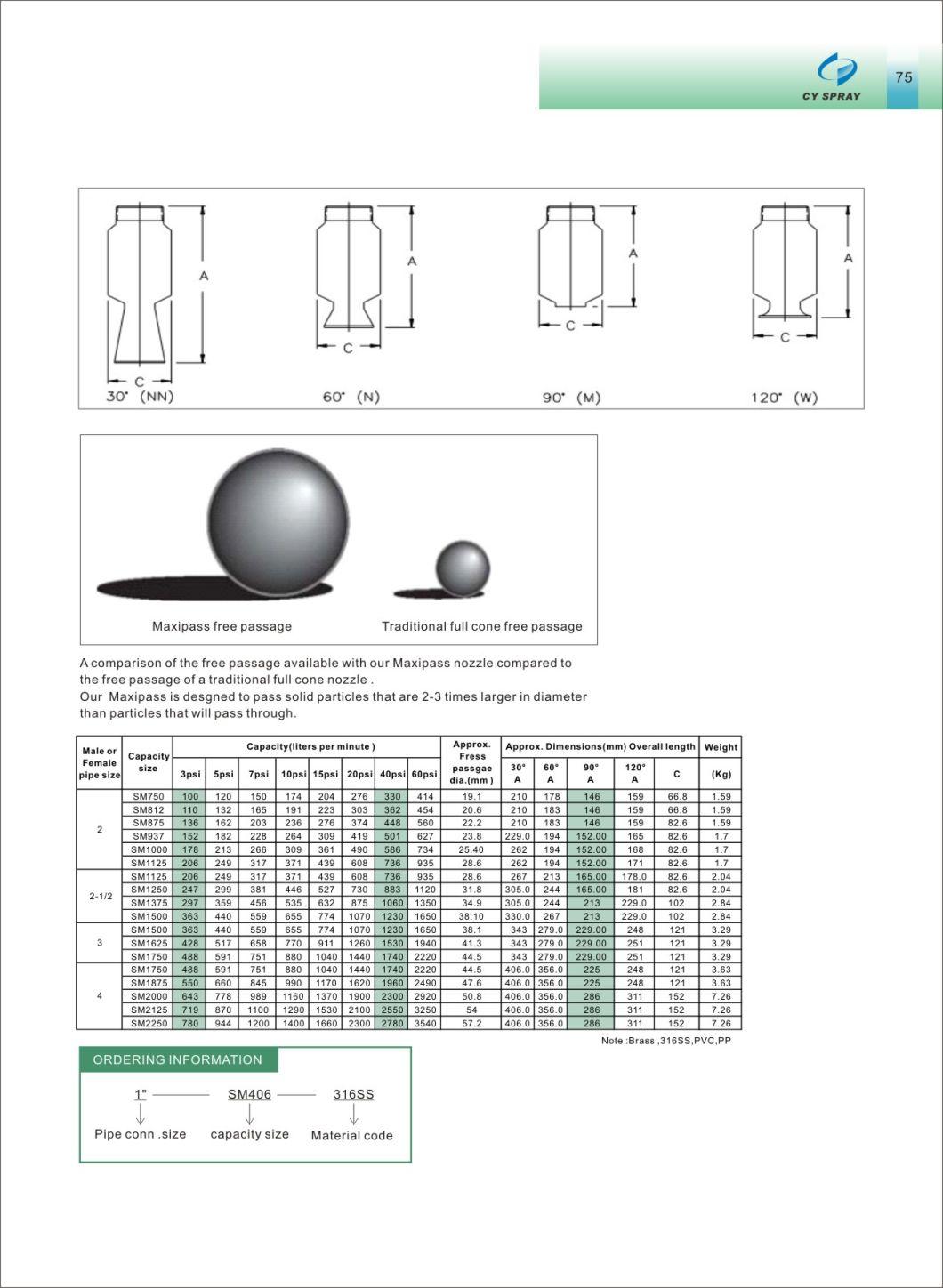

1.Integral instruction,with two S-shape vane  for biggest  unblocked passage,can pass more solid particle,3 times then common ful cone nozzle.



2.special design : can avoid block under bad situation.



3. can spray under low pressure and no clogging



4. with uniform spray pattern



5. with   3/8",1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3" male or female thread



6.material : brass, SS303,SS316,teflon,pp



7.spray angle:30,60,90,120 degrees



8.flow rate from 2.45L/min to 3400 L/min





Application:



1.fast cooling high termperature smoke

2.off-gas scrubbing

3.remove dust

4.quenching

5.washing &shower bleaching
