5c Horizontal Vertical Collet Index Fixture

Qingdao Tide Machine Tool Supply Co., Ltd.
  • Transport Package：Carton
  • Trademark：OEM
  • Origin：China

Base Info

  • Model NO.：235-6200
  • HS Code：8466100000
  • Production Capacity：1000PCS,Month

Description

Basic Info.

Model NO. 235-6200 HS Code 8466100000 Production Capacity 1000PCS/Month

Product Description

5c Horizontal Vertical Collet Index Fixture

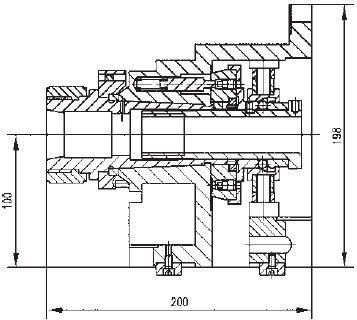

Height of center: 100mm/3-15/16"
Thread of spindle nose: 2.25-8"
Radial run-out of center hole of spindle: 0.02mm/0.0008"
End surface run out of the spindle's support shoulder: 0.01mm/0.0004"
Parallelism of centre line of surface: 0.02mm/0.0008"
Dividing accuracy individual spacing error: 0.03mm
Model No. 235-6200
5c Horizontal Vertical Collet Index Fixture5c Horizontal Vertical Collet Index Fixture
