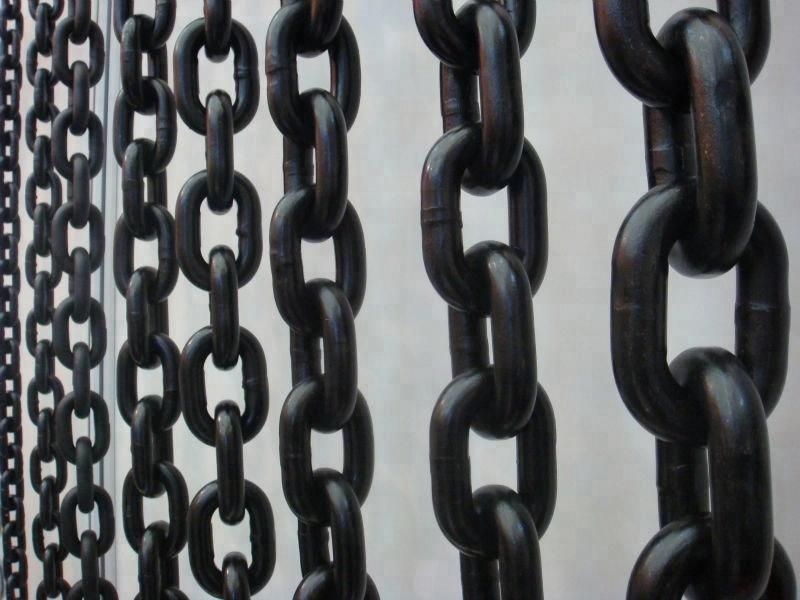

8mm G80 Steel Chain Black Chain Iron Drum Packing
Baoding Jiazhong Hoisting Machinery Plant- Usage：Drag Chain
- Material：Alloy
- Surface Treatment：Polishing or Black Finished
- Feature：Heat Resistant
- Chain Size：4mm-26mm
- Structure：Welded Chain
Base Info
- Model NO.：PL
- Color：Multi-Colored
- Working Load Limit：2t
- Inside Length：30mm
- Colour：Self Color or Black
- Grade：80
- Packing：Gunny Bag, Iron Drum, Plastic Drum Packing
- Transport Package：Wooden Case, Steel Drum
- Specification：CE GS ISO9001
- Trademark：HAIYAN
- Origin：Baoding China
- HS Code：731582000
- Production Capacity：1000000m,Year
Description
Basic Info.
Model NO. PL Color Multi-Colored Working Load Limit 2t Inside Length 30mm Colour Self Color or Black Grade 80 Packing Gunny Bag, Iron Drum, Plastic Drum Packing Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/YearProduct Description

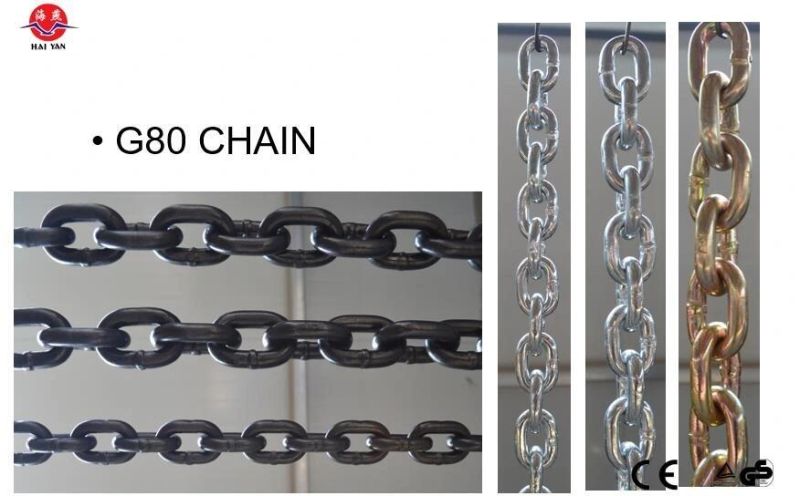

8mm G80 Steel Chain Black Chain iron drum packing
G80 load chain specifications:
| Size(mm) | Inside Width(mm) | Outside Width(mm) | Approx Weight KG/M | W.L.L. Ton | Test Load KN | B.L. KN |
| 6 x 18 | 7.5 | 21.0 | 0.79 | 1.1 | 27 | 45.2 |
| 7 x 21 | 9.0 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8 x 24 | 10.0 | 28.0 | 1.38 | 2.0 | 48 | 80.4 |
| 10 x 30 | 12.5 | 35.0 | 2.20 | 3.2 | 76 | 125 |
| 12 x 36 | 15.0 | 42.0 | 3.10 | 4.6 | 109 | 181 |
| 13 x 39 | 16.3 | 46.0 | 3.80 | 5.0 | 128 | 214 |
| 16 x 48 | 20.0 | 56.0 | 5.63 | 8.0 | 192 | 320 |
| 16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
