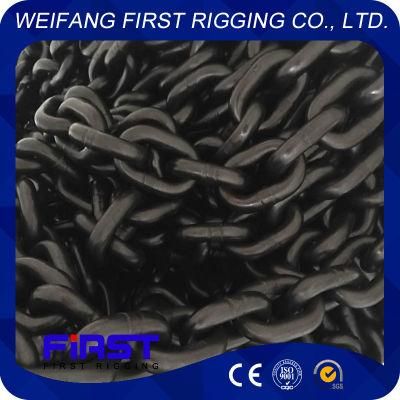

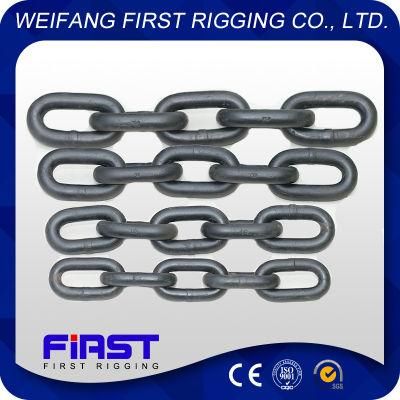

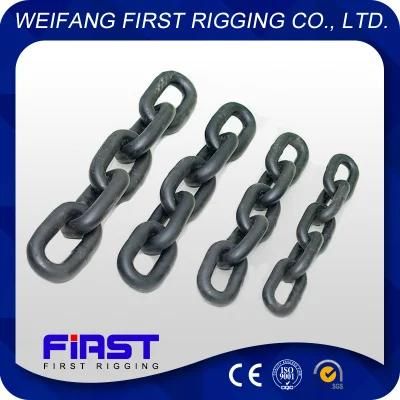

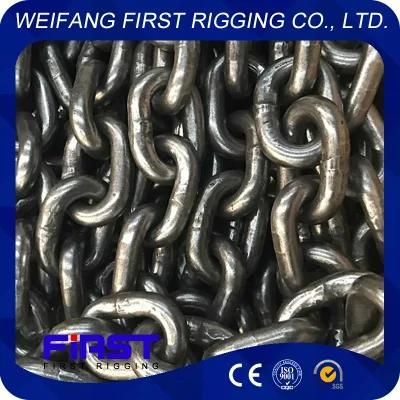

Nacm96 Standard G70 Chain with Superior Quality
Weifang First Rigging Co., Ltd.- Usage：Drag Chain, Nacm96 Chain
- Material：Alloy
- Surface Treatment：According to Your Requirements
- Feature：Heat Resistant
- Chain Size：1,4--5,8
- Structure：Welded Chain
Base Info
- Model NO.：FST-NACM-20
- Color：According to Your Requirements
- Product Name：Nacm96 Standard G70 Chain with Superior Quality
- Process：Welded+Heat Treatment+Surface Treatment
- Certificate：ISO9001
- Transport Package：Packed in Wooden Case,Iron Drum, Then in Pallets
- Specification：1,4--5,8
- Trademark：First Rigging
- Origin：Shandong, China
- HS Code：73158200
- Production Capacity：150ton,Month
Description
Material DiameterInside Length(max) Inside Width(min) Working Load Limit Proof test(min) Min Breaking(force) Unit Weight Per100' IN MM IN MM IN MM IN KG LB KN LB KN LB KG LB 1/4 7 0.276 31.5 1.24 9.8 0.38 1430 3150 28 6300 36 12600 29.4 64.8 5/16 8.7 0.343 32.8 1.29 11.2 0.44 2130 4700 41.8 9400 83.6 18800 46.7 103 3/8 10 0.394 35 1.38 14 0.55 2990 6600 58.7 13200 117.4 26400 63.7 140 1/2 13.5 0.531 45.5 1.79 18.2 0.72 5130 11300 100.5 22600 201 45200 116.4 257 5/8 16 0.63 56 2.2 20 0.79 7170 15800 140.5 31600 280.9 63200 155 342
Packaging & Delivery:
Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
