• Model NO.：PL
• Color：Multi-Colored
• Working Load Limit：8t
• Inside Min：48mm
• Colour：Black
• Grade：80
• Hook：Good Quality
• Transport Package：Wooden Case, Steel Drum
• Specification：100m,pcs
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. PL Color Multi-Colored Working Load Limit 8t Inside Min 48mm Colour Black Grade 80 Hook Good Quality Transport Package Wooden Case/ Steel Drum Specification 100m/pcs Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

Best Selling 16mm G80 Alloy Steel Chain for Mining1.Sizes: 6mm to 24mm, alloy steel  20Mn2
2.Length:any length is ok
3.Surface: self-color,polishing,black,plastic coating,hot-dip,zinc plated,etc.
4.Safety factor:4:1
5.Advantage: resistant to corrosion &rust; durable.
6.OEM is welcome
7.Equipment: automatic knitting chain machine, automatic welding machines, automatic correction machine,
heat treatment machine,loading test machine,polish machine
8.Marking: usually mark G80 every 6 chain,we can also do as required.
9. We also can make the non-standard chain according to the clients' requirements.

G80 lifting chains specifications as belows:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320

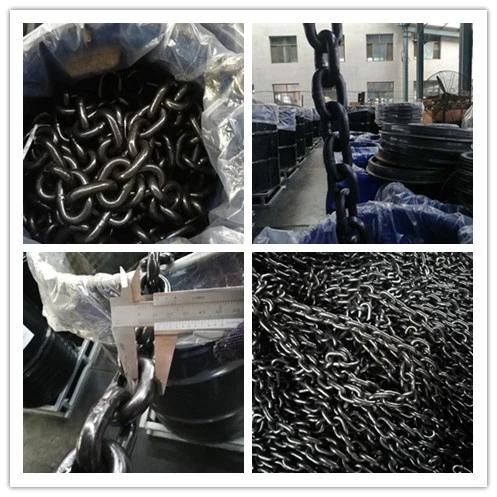

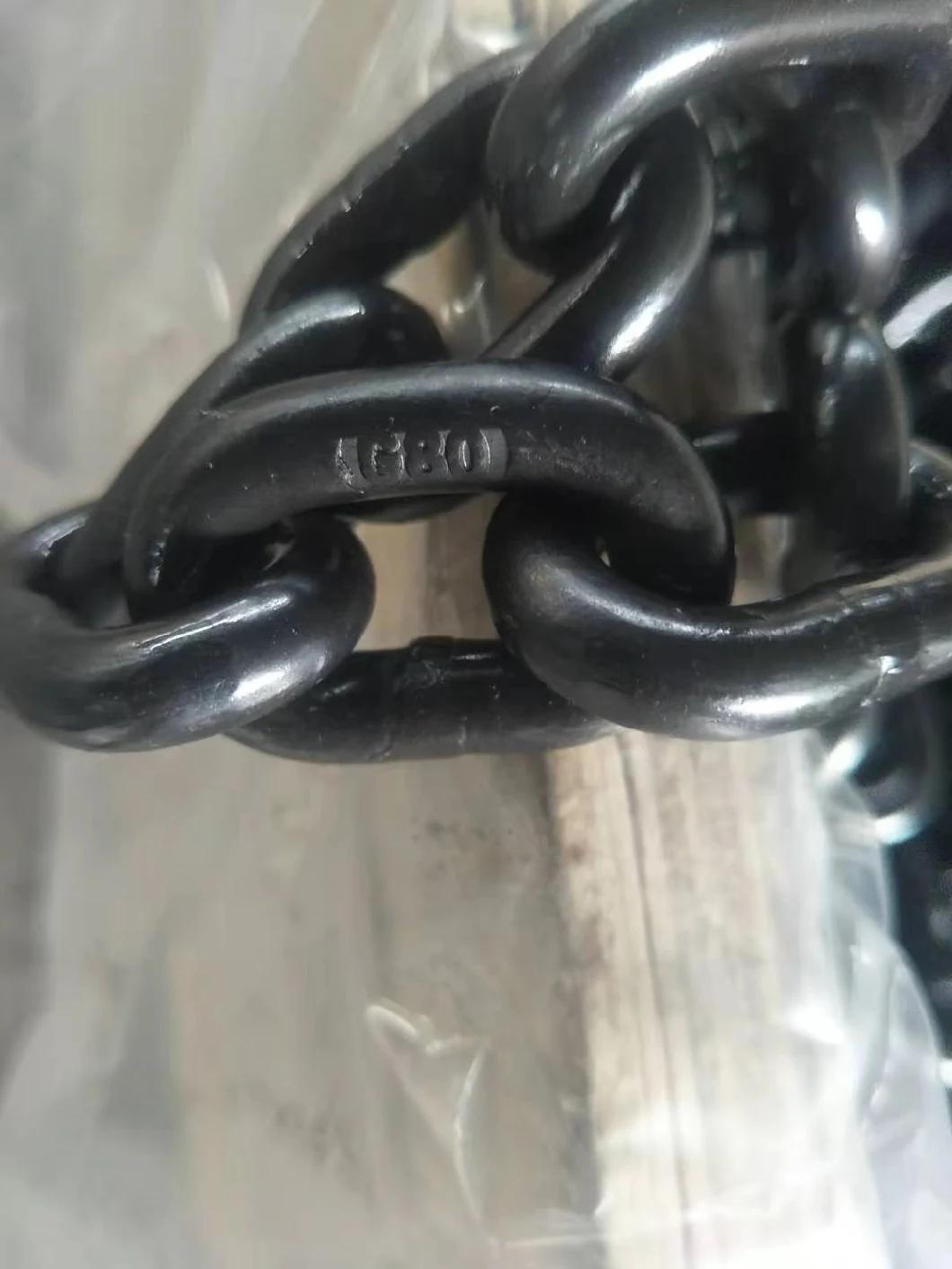

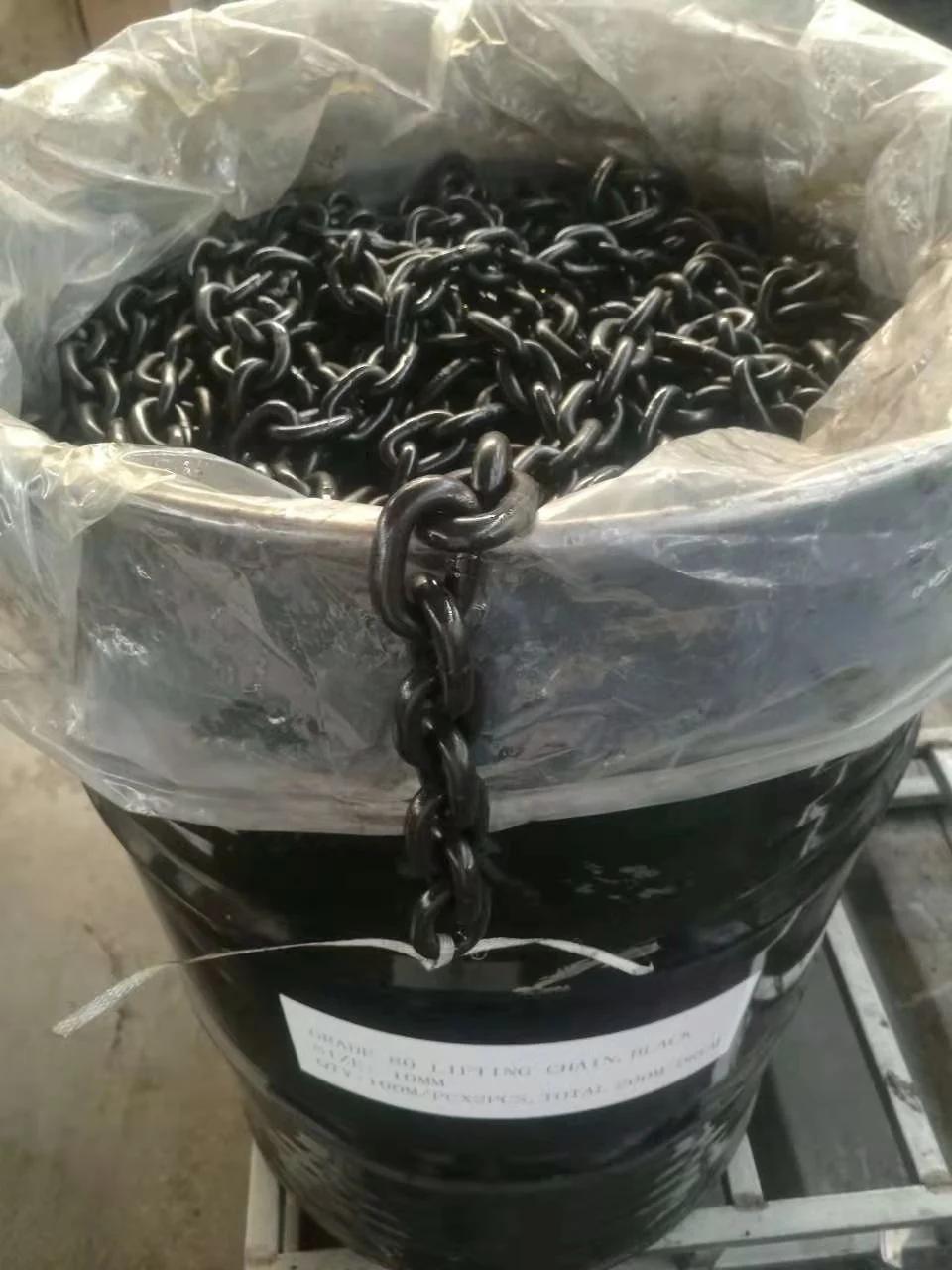

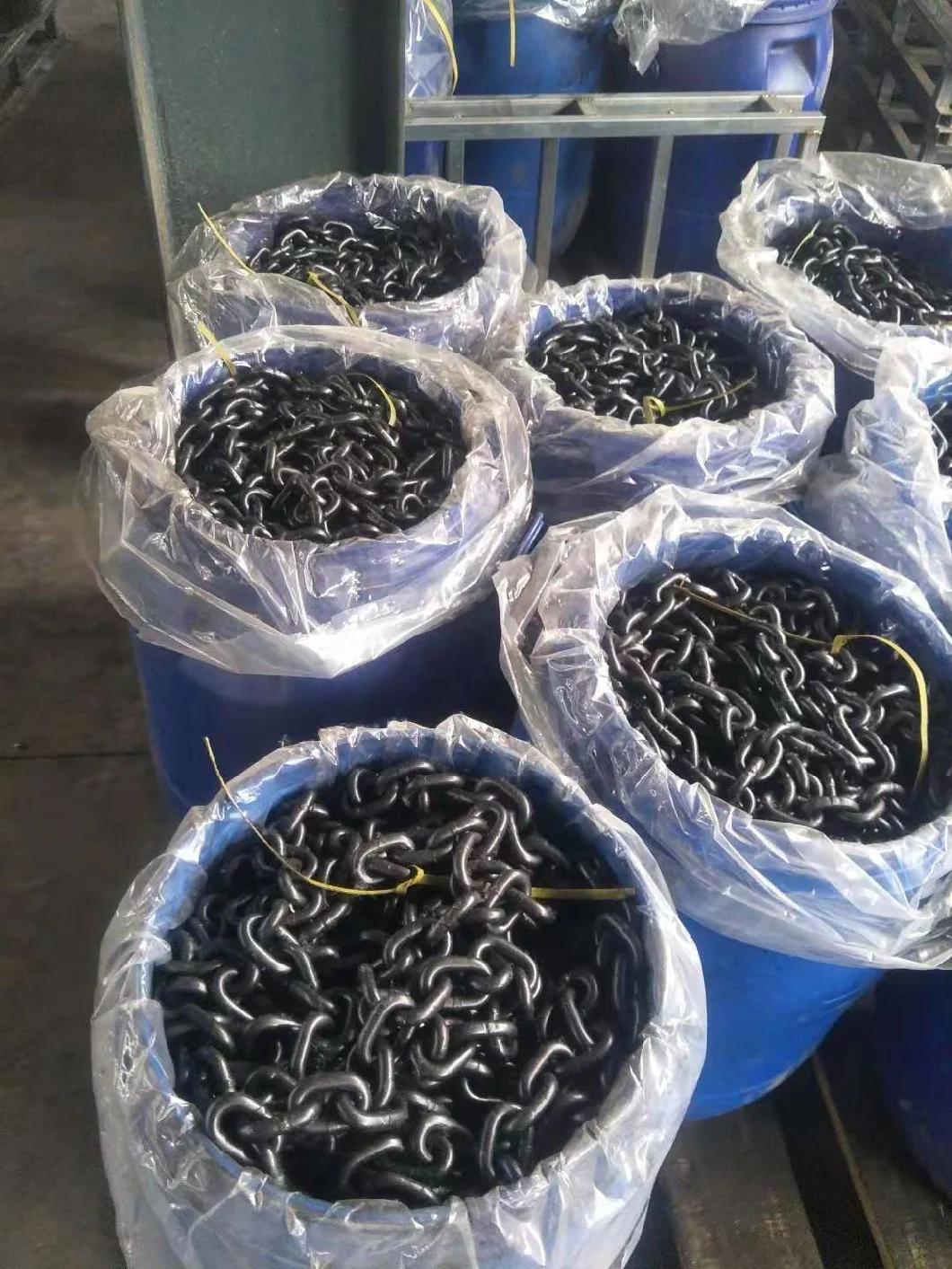

Pics of G80 black lifting chains:

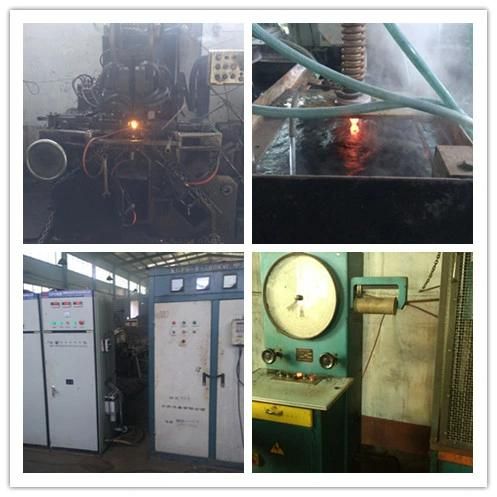

Prouction flow:
we use high quality manganese steel material, annealing, automatic knitting , automatic welding , automatic correction , heat treatment ,loading test ,polish,surface treatment,export packing
We specializes in manufacturing standard heavy duty lifting chain (4MM -12MM), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

We are looking forward to making business with you!
