• Model NO.：PL
• Color：Multi-Colored
• Working Load Limit：1t
• Inside Length：19mm
• Colour：Black
• Grade：80
• Hook：Good Quality
• Transport Package：Wooden Case, Steel Drum
• Specification：CE GS ISO9001
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. PL Color Multi-Colored Working Load Limit 1t Inside Length 19mm Colour Black Grade 80 Hook Good Quality Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

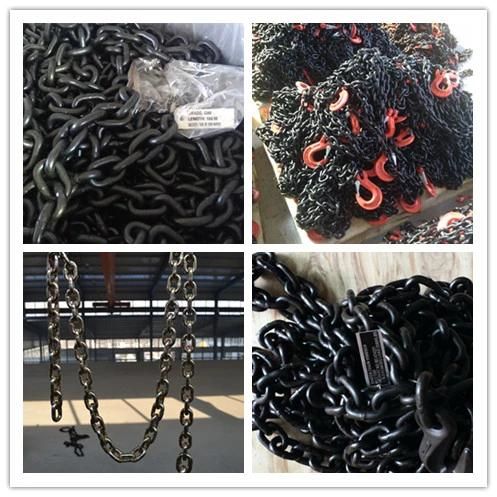

Manufacturer Supply ALLOY CHAIN GRADE 80 1/4 X 500'Product descriptions:
Manufacturer Supply ALLOY CHAIN GRADE 80 1/4 X 500'

Size: 6mm-42mm

Material: Alloy steel,

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Color: Self color, black

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

Chains specifications as belows:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320
18x54	23	63	6.85	10	246	410
19x57	23.7	63.5	7.7	11.3	270	450
20x60	25	70	8.6	12.5	300	500
22x66	28	77	10.2	15.3	366	610
26x78	35	91	14.87	21.3	510	850
30x90	38	105	19.6	28.3	678	1130
32x96	40	106	22.29	32.2	772	1286

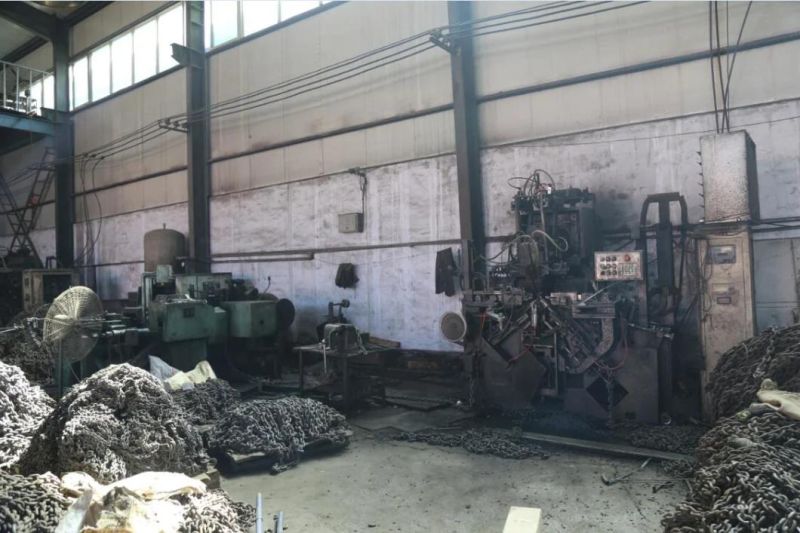

Welding machine:

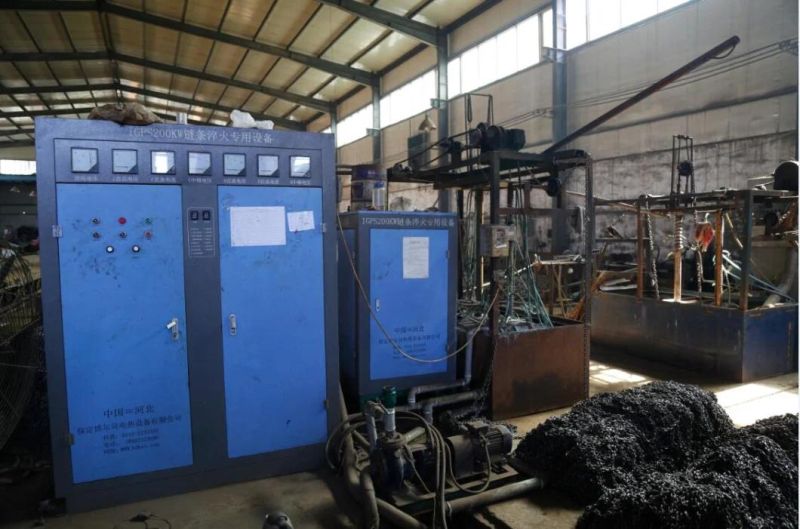

Heat treatment:

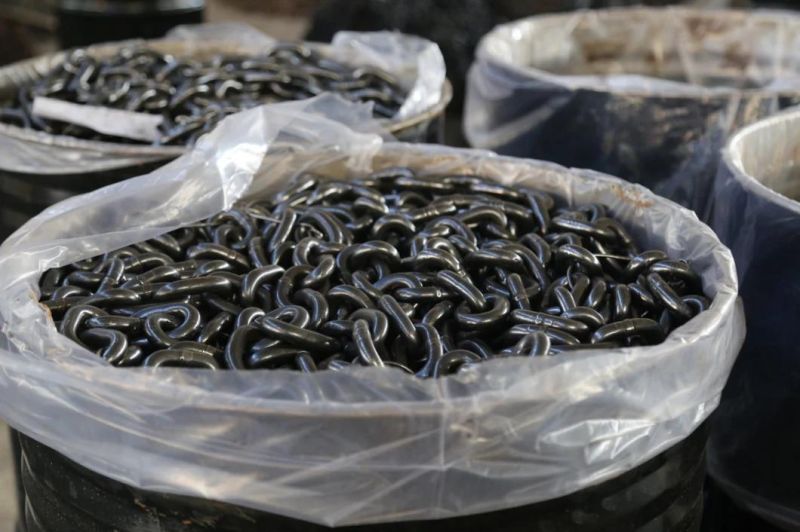

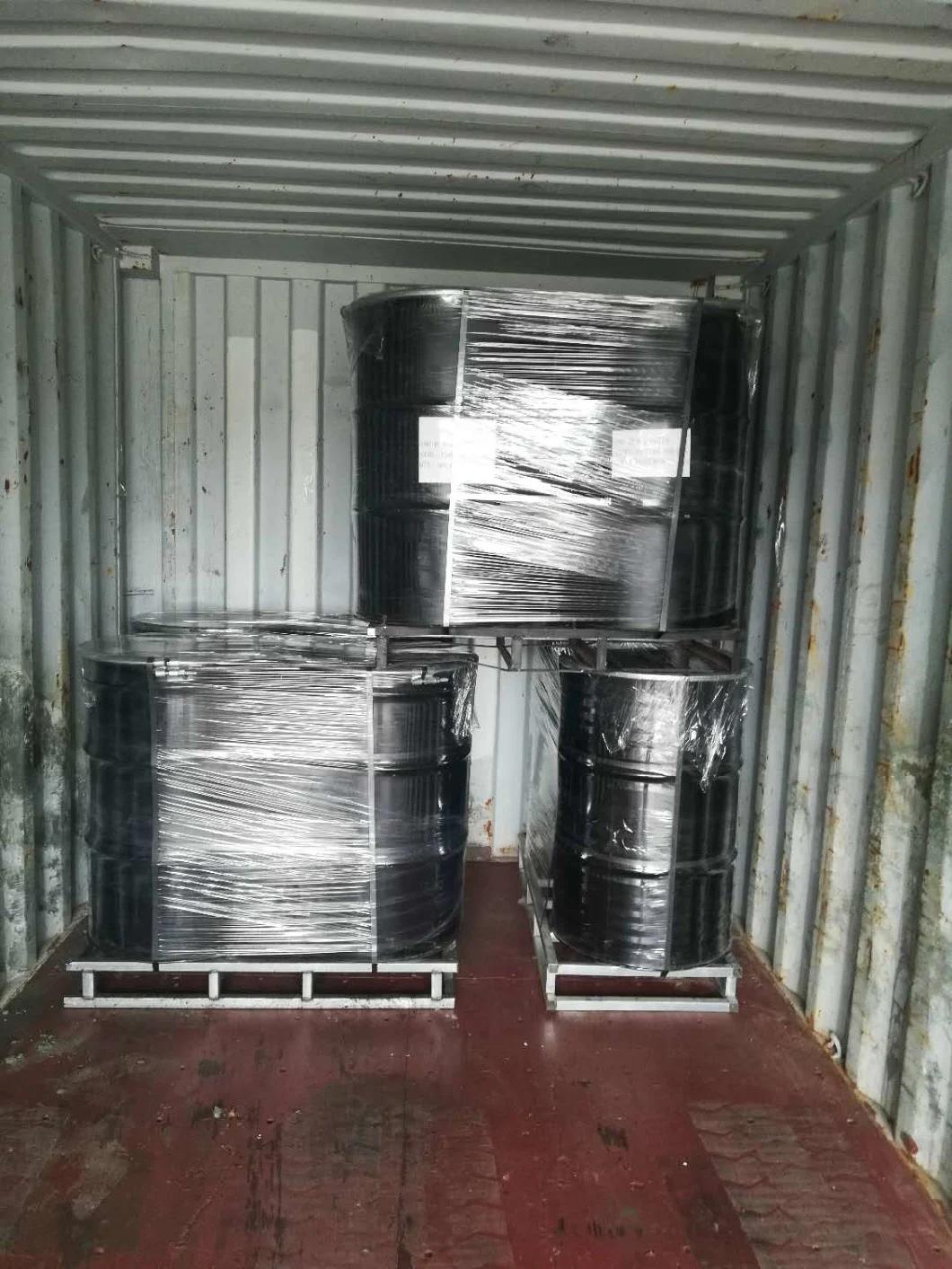

Packing pic as belows:You can select gunny bag, ton bag, wooden case or iron drum packing



Baoding Jiazhong Hoisting Machinery was founded in 1999 in Baoding. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ42), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

Welcome to call us 008615930701937 for more details!
