• Model NO.：HDS--01201
• HS Code：8207509000
• Production Capacity：10, 000sets,Month

Basic Info.

Model NO. HDS--01201 HS Code 8207509000 Production Capacity 10, 000sets/Month

Product Description

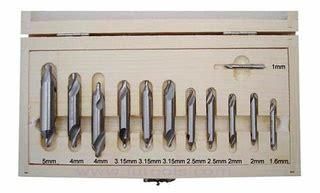

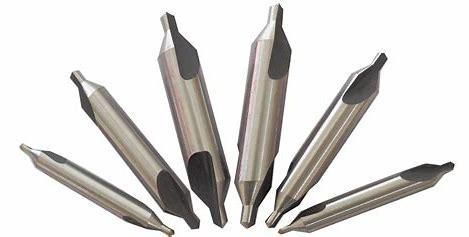

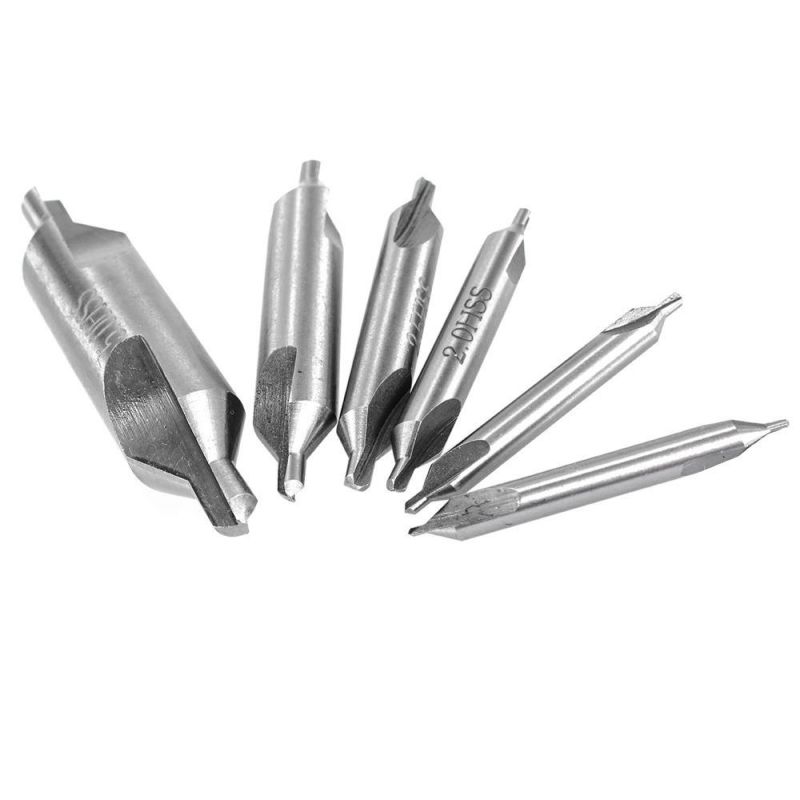

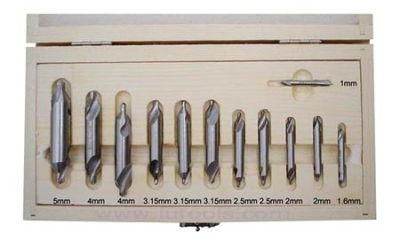

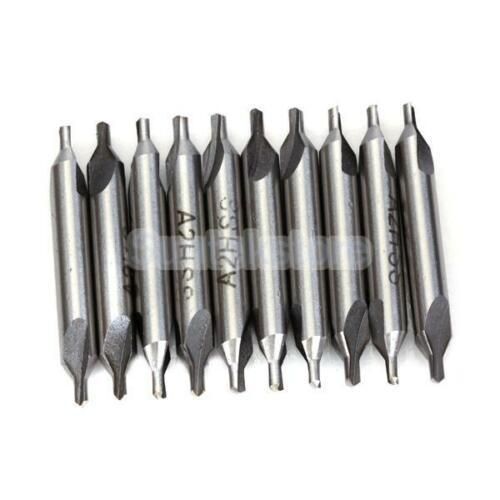

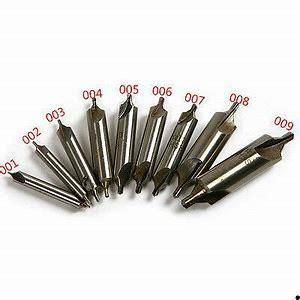

12 PCS HSS Center Drills Set in Wooden Box
DIN333 Type A,
Fully Ground, Bright Finish

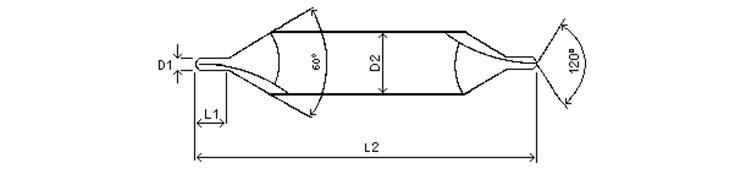

size:

D1	D2	L1	L2
MM	MM	MM	MM
0.5	3.15	0.8	20.0
0.8	3.15	1.1	20.0
1.0	3.15	1.3	31.5
1.25	3.15	1.6	31.5
1.6	4.0	2.0	35.5
2.0	5.0	2.5	40.0
.2.5	6.3	3.1	45.0
3.15	8.0	3.9	50.0
4.0	10.0	5.0	56.0
5.0	12.5	6.3	63.0
6.3	16.0	8.0	71.0
8.0	20.0	10.1	80.0
10.0	25.0	12..8	100.0
12.5	31.5	16.5	125.0

Features:1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers.
2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on.
3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance.
4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends.
5.Easy cutting with high speed and excellent offtake of chips.suitable for products with straight flute,oblique flute and spiral fiute,etc.
6.60 degree countersink angle fits all standard centers
7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
