• Model NO.：WR78XHD
• Color：Solid Color
• Trade Style：Trade,Manufacture,OEM
• Model：Wrxhd
• Pitch：66.59
• Pack：Neutral
• Transport Package：Polybag+Box+Case
• Specification：All Kinds
• Trademark：TAI, OEM
• Origin：Suzhou, China
• HS Code：73151900
• Production Capacity：20, 000m,Month

Basic Info.

Model NO. WR78XHD Color Solid Color Trade Style Trade/Manufacture/OEM Model Wrxhd Pitch 66.59 Pack Neutral Transport Package Polybag+Box+Case Specification All Kinds Trademark TAI, OEM Origin Suzhou, China HS Code 73151900 Production Capacity 20, 000m/Month

Product Description

Offset welded steel chain (WR78XHD)

Supply offset sidebar welded steel chain,straight sidebar welded steel chain:
WR78,WH78,
WR82,WH82,
WR124,WH124,
WR111,WH111,
WR106,WH106,
WR132,WH132,
WR150,WH150,
WR155,WH155,
WR157,WH157,
WR159,WH159,
WR200,WH200

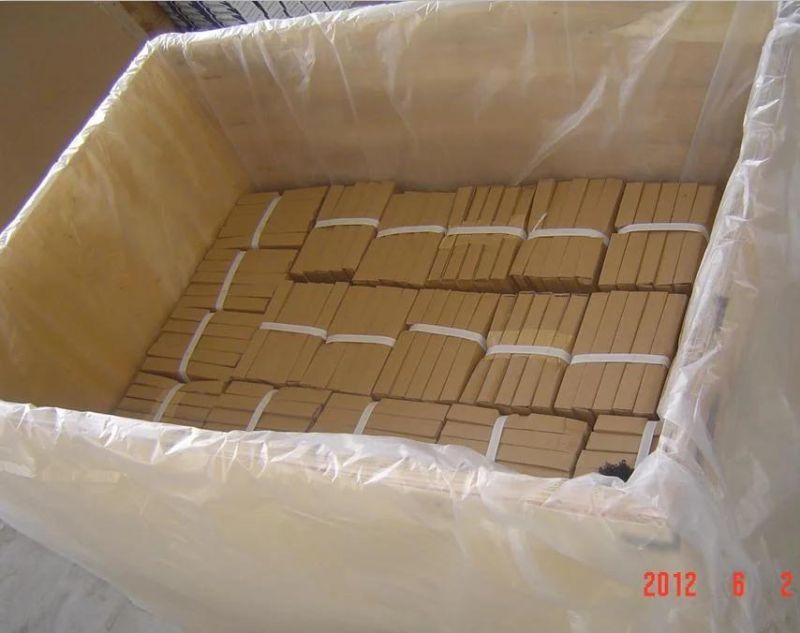

Pack Detail:






Company Detail:

 CHOOSE TAI

   1.Tran-auto industries co.ltd was established in 2005.With "Customer first,quality first"
service concept, we had become one of the main export chain and transmission equipments in China. TAI at present mainly produce various specifications of standard and non-standard chains, such as transmission chain, conveyor chain, agricultural chain, motorcycle chain, stainless steel chain, also produce various specifications and materials of chain sprocket, pulley, timing pulley, taper bush and coupling.
  2.TAI with sophisticated CNC equipment, advanced technology and perfect inspection equipment produce all kinds of chains, sprockets and other transmission equipments which can make the customers' trust. The company since its establishment has passed ISO9001 and other certifications. "High quality, high benefit, high standards" to sing more integrated into the world. Adhering to the "good faith service to customers" purposes,  from being in order to after-sales service ,each bit closely link, TAI will provide the most intimate, comprehensive service.
  3."Meet the customers' requirement, until customers' satisfaction" is our goal from start to finish, better innovation and better cooperation can create better TAI to service the world. Let us work together, to create a better future with each other.


Ava Gao(Sales)
Tran-Auto Industries Co.,Limited
716 Gold River Center,NO.88 Shishan Rd.,
New District,Suzhou,P.R.China.P.C.:215011
Tel:0086-512-65830037/15862544283
Fax:0086-512-65529992
tran-auto.en.made-in-china.com


Chain No	Pitch (mm)	Outside Barrel Dia (mm)	Pin Dia (mm)	Side Bar Height (mm)	Approx Tooth Face at pitch line     (mm)	Length of Bearing (mm)	Plate Thickness (mm)	Ultimate tensile strength (KN)	Weight Approx                                   (Kg/FT)
WR78XHD	66.95	25.4	14.29	31.75	25.4	50.8	9.5	779	2.82
