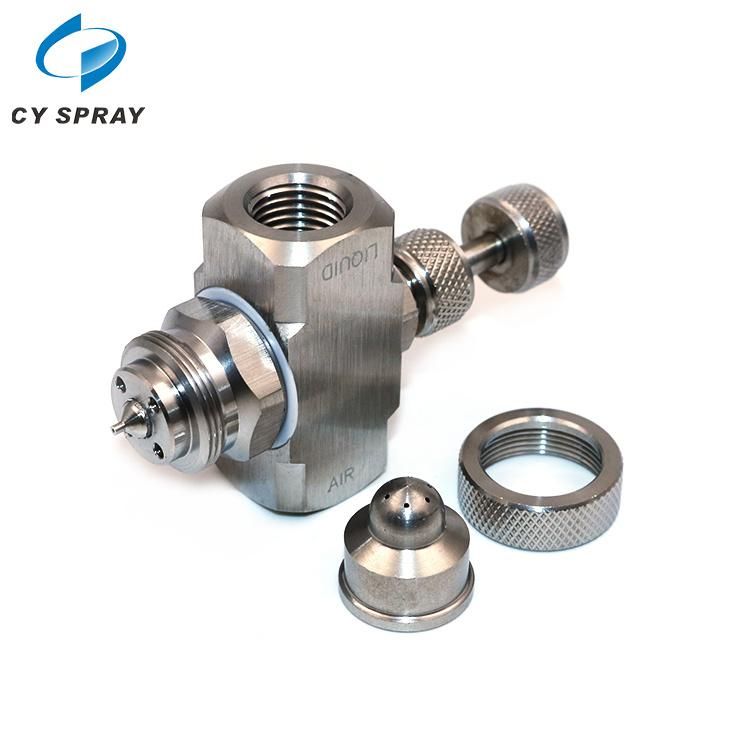

1/4 Stainless Steel Double Fluid Fine Air Atomizer Nozzle
CY Spraying & Purification Technology Limited- Connect Thread Size：1,8", 1,4"
- Material：Brass, Ss
- Spray Angle：30-70 Degree,We Can Design It
- Working Pressure：0.7-6bar
- Application：Dust Removal , Air Control, Dust Control,Humidifi
- Product Name：Water Spray Nozzles
Base Info
- Model NO.：D
- Advantage：0-50um Drop Size,Finest Spray
- Spray Shape：Flat Fan ,Wide Angle ,Round
- Thread Type：BSPT ,NPT, BSPP
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Basic Info.
Model NO. D Advantage 0-50um Drop Size,Finest Spray Spray Shape Flat Fan ,Wide Angle ,Round Thread Type BSPT ,NPT, BSPP Transport Package Standard Export Carton Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per DayProduct Description
Specifications Siphone Air Atomizing Nozzle1. Application: Humidty, Cooling and Dust Control
2. Spray Pattern: Full Cone and Flat Fan
Adjustable Air Atomizing Nozzle
1. Application: Humidty, Cooling and Dust Control
2. Spray Pattern: Full Cone and Flat Fan
3. Adjustable: Sipone Type
4. Air Atomizing Nozzle: Siphon-fed Round
5. Siphon-fed Round type: Internal Mix, Full Cone, Adjustable, Air atomizing, Mixing Air and Water
6. Pressure-fed type: Internal Mix, Flat Fan Nozzles, Air Atomizing Spray Nozzles, Mixed Air Atomizing Nozzles and Adjustable
7. Material: 316Stainless Steel, PP, PVC, Telflon, Brass
8. Design Feature
Mixed Air Atomizing Nozzles,
Adjustable and fixed air atomizing nozzle,
Atomizing Nozzle, Air Atomizing Nozzles, Mixed Atomizing Nozzle, Misting
Common application:
Lowest flow available
Very fine atomization
Narrow spray angle (12° To 22° )
Full cone pattern
Short to moderate forward spray projection

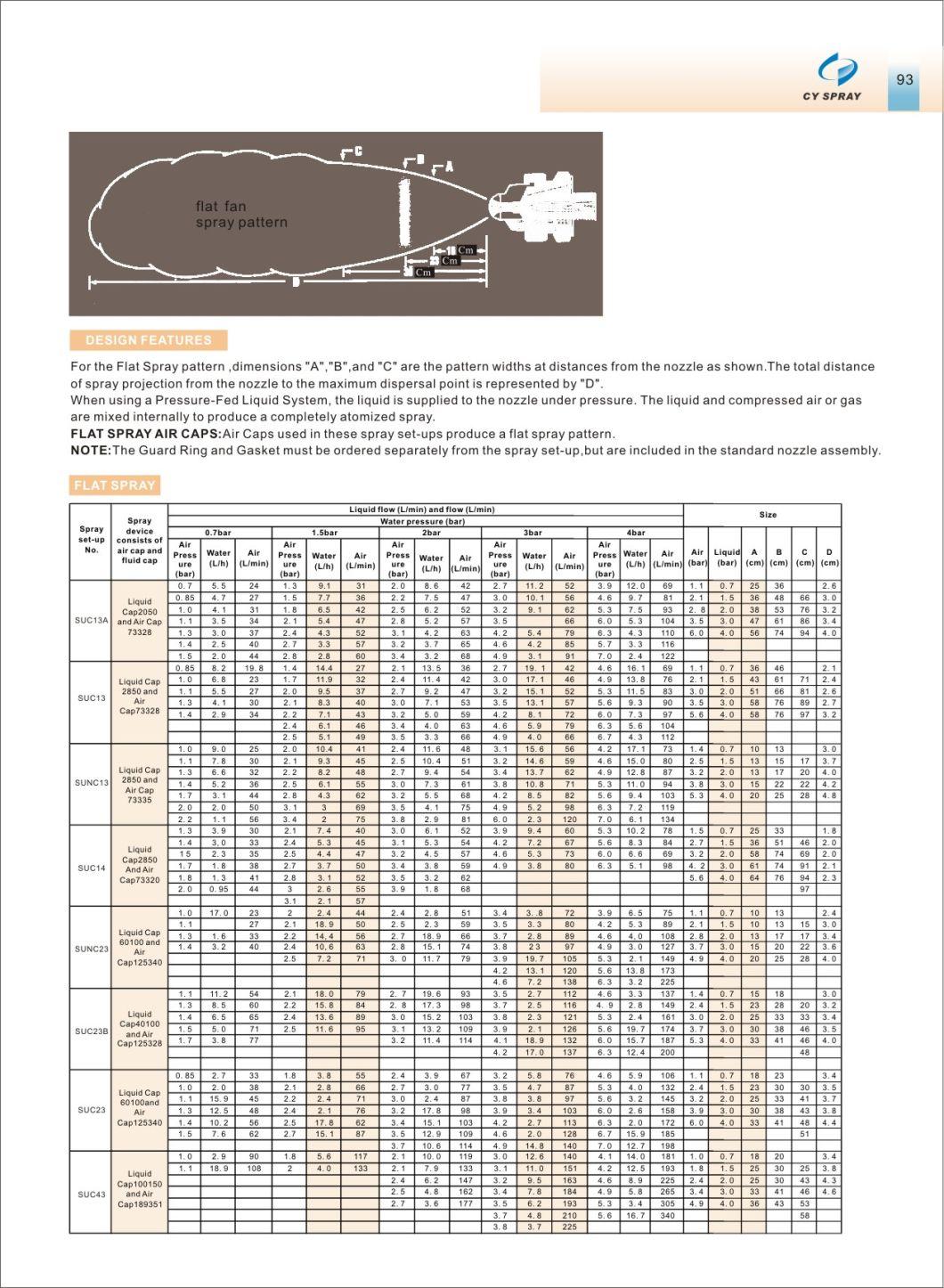

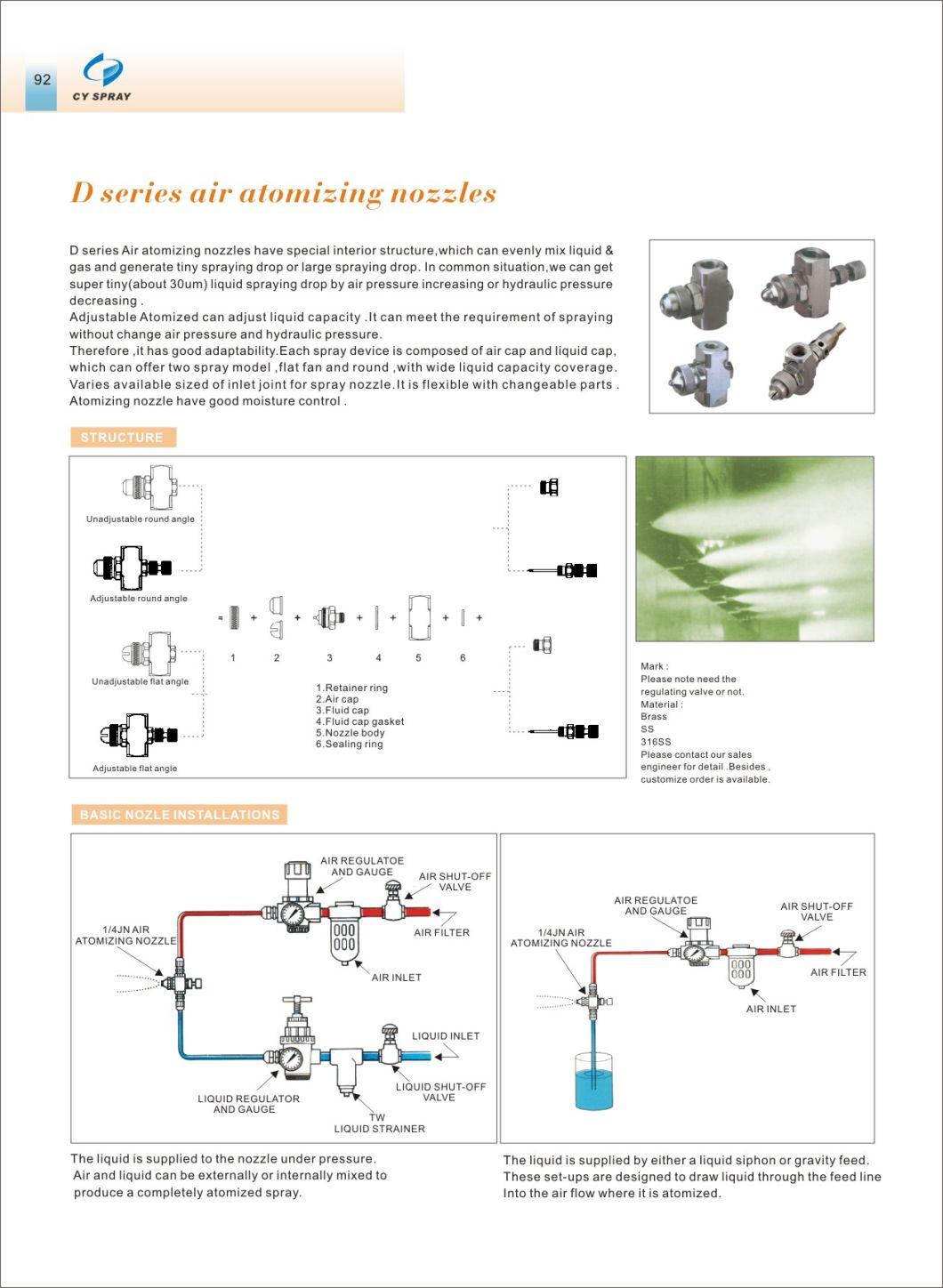

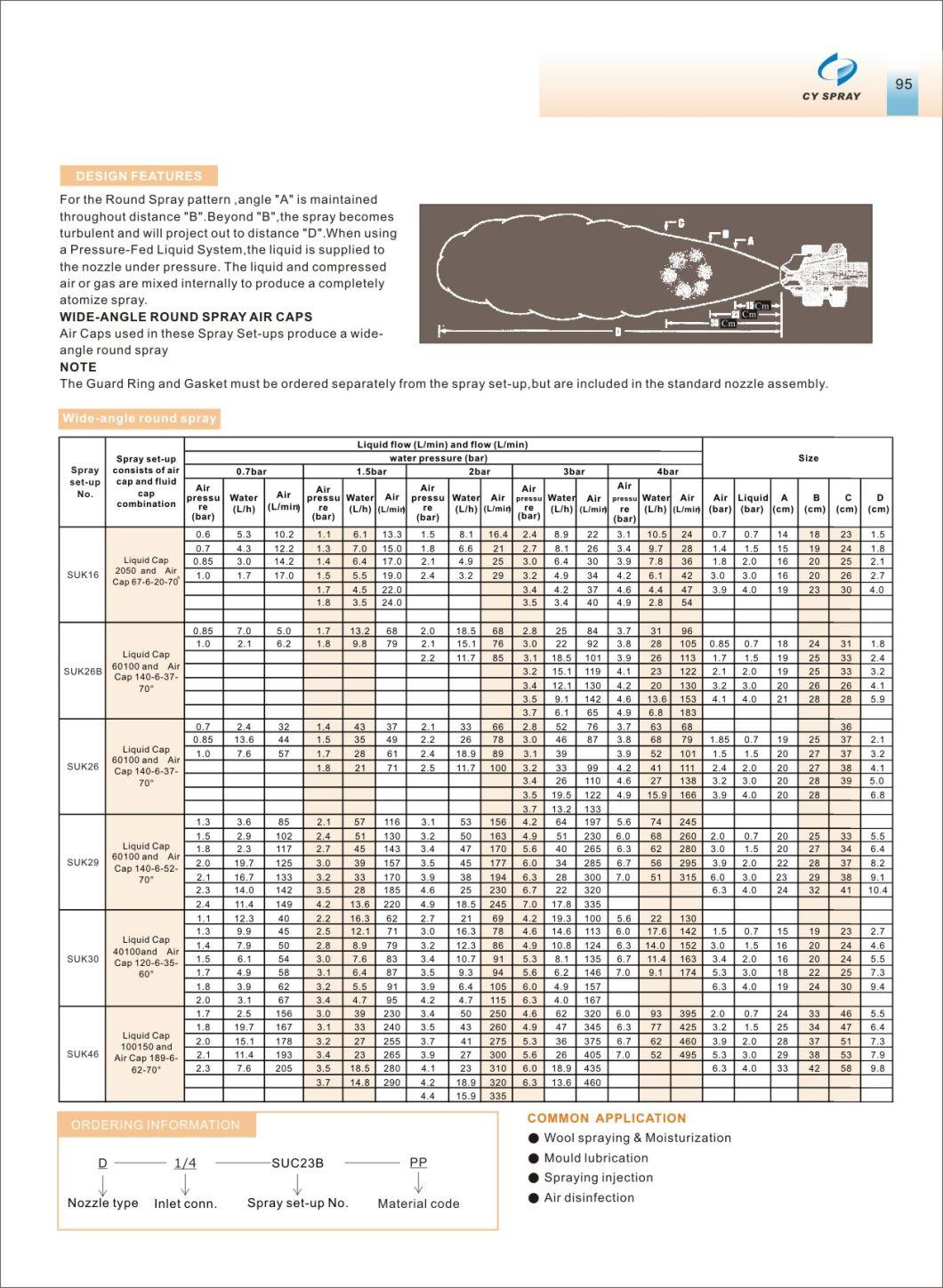

Catalogue
Test Report
COMPANY PROFILE
