316 Stainless Steel Ruby Core Anti Drip High Pressure Fog Nozzle
CY Spraying & Purification Technology Limited- Thread Size：1,4
- Core Material：Ss or Ruby
- Spray Angle：90 Degrees
- Orifice Size：0.5 mm
- Spray Pattern：Fog
- Transport Package：Standard Export Carton
Base Info
- Model NO.：JM
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Basic Info.
Model NO. JM Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per DayProduct Description

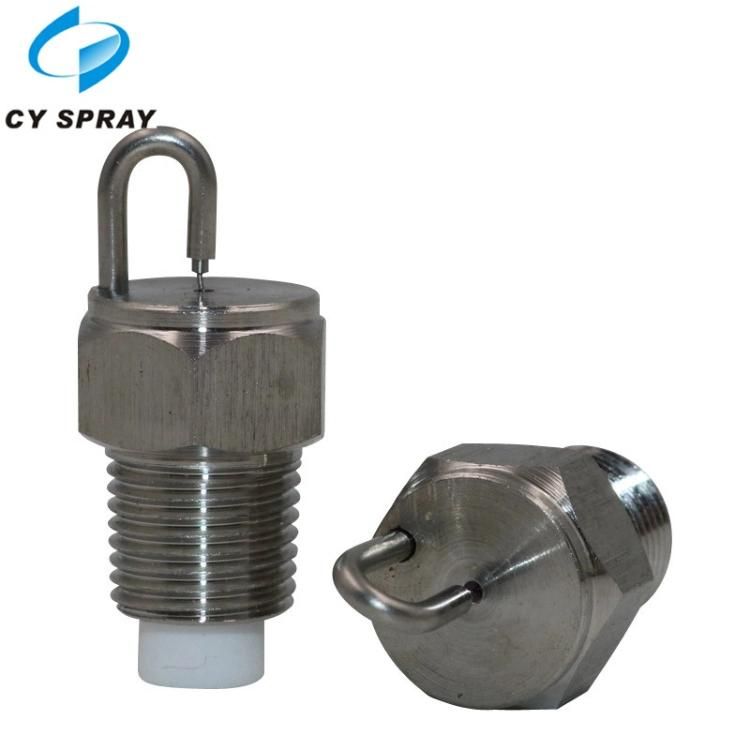

316 Stainless Steel Ruby Core Anti Drip High Pressure Fog Nozzle
Design Features:
Metal fog spray nozzle consists of SS body with a leak-proof device.
The liquid flows at high velocity under the water pressure of 70kg to 120kg, forming centrifugal swirl and spraying very fine hollow droplet.
The fog droplet sizes are about 30um.
Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
The imported US punching machine punches orifice about 0.15 to 0.5mm in size.
The nozzle saves 10 times or above cost than that of moistening by air.
