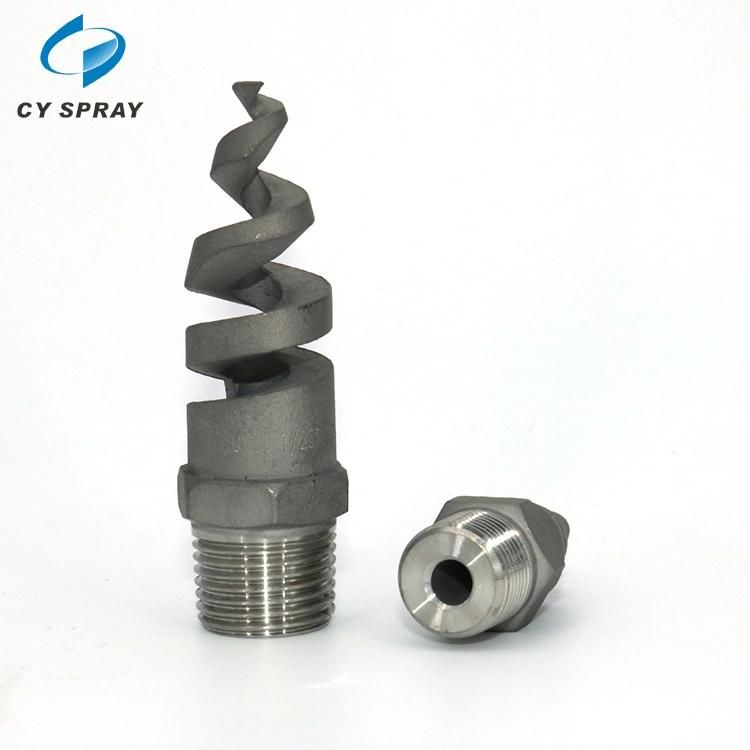

PVC or PP Full Cone Water Jet Spiral Nozzle Injector
CY Spraying & Purification Technology Limited- Mateiral：Ss,PP
- Thread Size：1,8,1,4,1,2,3,8,1,1-1,4,1-1,2,2
- Spray Angle：60,90,120,170
- Application：Exhaust Gas Filtration,Washing,Rinsing,Gas Cooling
- Spray Pattern：Hollow Cone,Full Cone
- Transport Package：Standard Export Carton
Base Info
- Model NO.：SPJT
- Specification：ISO9001, ISO1401
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：500PCS Per One Day
Description
Basic Info.
Model NO. SPJT Specification ISO9001, ISO1401 Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 500PCS Per One DayProduct Description

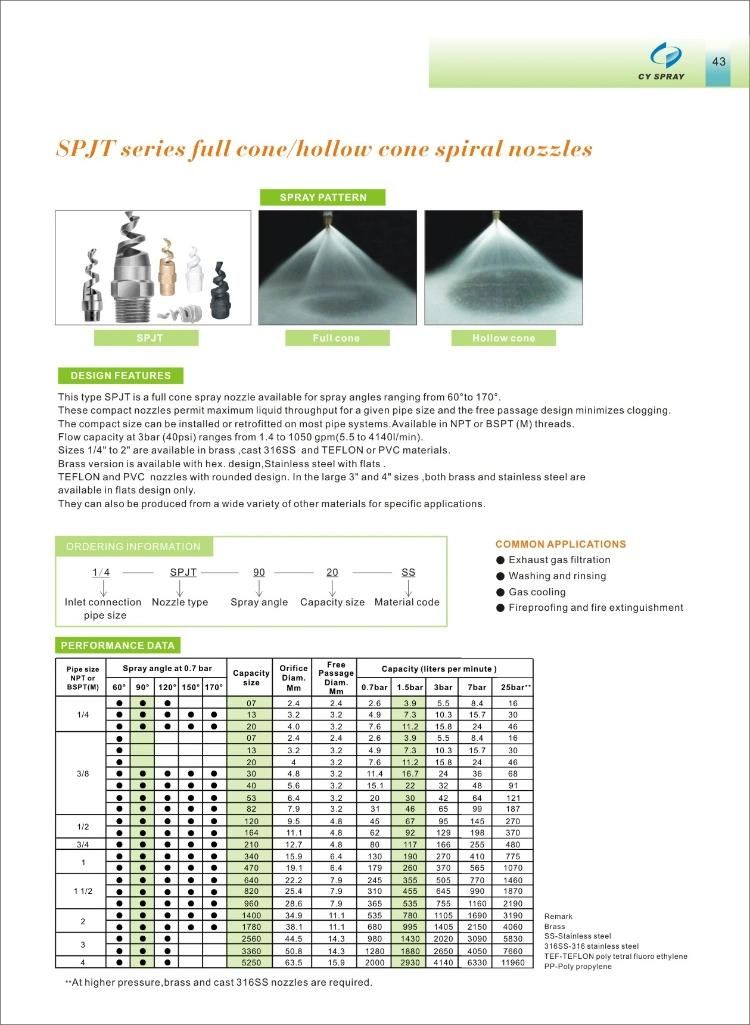

SPJT nozzle are hollow/full cone with spraying angle from 60° To 170°
Under 3 bar pressure, the flowing rate of liquid is 5.5-4140 L/min
It has an expedite flow channel design, which can decrease liquid barrier for maximal capacity with certain size
Spiral spray nozzle can be installed or replaced in lots of pipe system
NPT/BSPT (male) thread are provided
The common 1/4-2-inch nozzles are made of brass, SS316, Teflon, or PVC
Other selective materials can be used for special application
Exhaust gas filtration
Gas cooling
Washing and rinsing
Fireproofing and fire extinguisher
