Lifting Equipment Hardware Vertical Steel Plate Clamp with 16 Ton Capacity

Chongqing Deso Lifting Co., Ltd.
  • Material：Metal
  • Usage：Heavy Duty Clamp, Pipe Clamp
  • Structure：G Clamp
  • Standard：Standard, Nonstandard
  • Condition：New
  • Brand：Deso or Authorized Brand

Base Info

  • Model NO.：CD
  • Payment：T,T L,C
  • Delivery Time：20-40 Days
  • Transport Package：Carton or Wooden Box
  • Specification：0.8-16Ton
  • Trademark：Deso
  • Origin：China Mainland
  • HS Code：82041100
  • Production Capacity：500000PCS,Year

Description

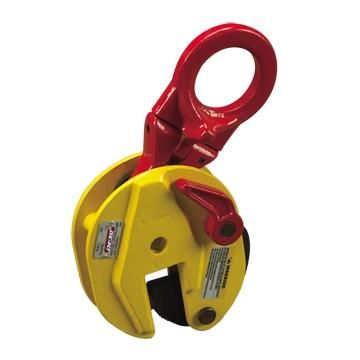

 Lifting Equipment Hardware Vertical Steel Plate Clamp with 16 Ton Capacity
 For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong).Articulated lifting shackle(CD  type).Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.The clamp is locked in closed as well as in open position.Manufactured from high quality carbon steel
Technical Data SheetModelWLL
(ton)Jaw Opening
(mm)Weight
(kg)Deso-CD0.80.80-152Deso-CD11.00-154Deso-CD1 (B)1.00-205Deso-CD1.61.60-207Deso-CD22.00-258Deso-CD3.23.20-2515Deso-CD3.2 (B)3.20-3015Deso-CD55.00-3021Deso-CD5 (B)5.00-5023Deso-CD88.00-4537Deso-CD1212.050-9050Deso-CD1616.060-10065
