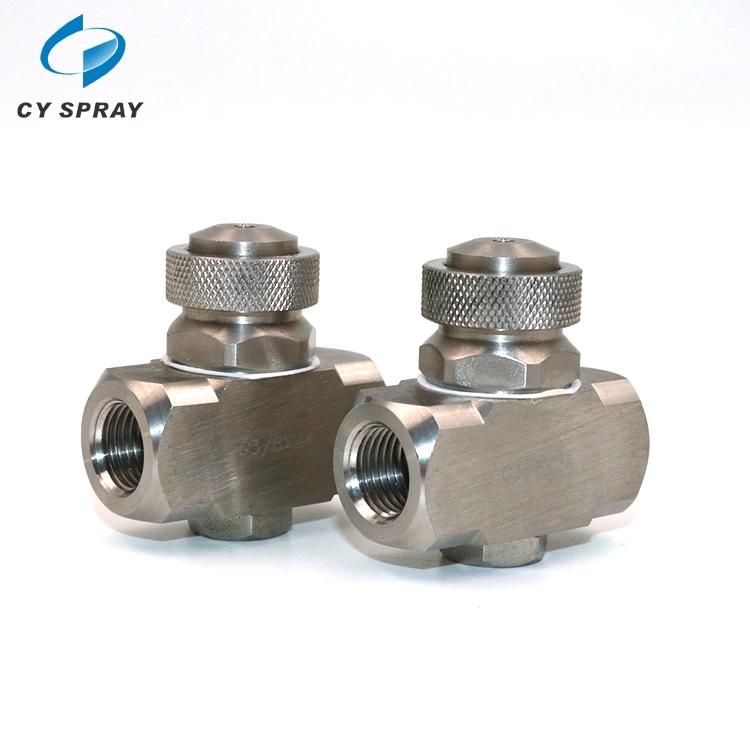

D Series Siphon Nozzle
CY Spraying & Purification Technology Limited- Connect Thread Size：1,8", 1,4"
- Material：Brass, Ss, SS304
- Advantage：0-50um Drop Size,Finest Spray
- Working Pressure：0.7-6bar
- Spray Angle：30-70 Degree,We Can Design It
- Thread Type：BSPT ,NPT, BSPP
Base Info
- Model NO.：siphon nozzle
- Spray Shape：Flat Fan ,Wide Angle ,Round
- Packing：Two Pieces ,Plastic Box
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：500PCS Per Day
Description
Basic Info.
Model NO. siphon nozzle Spray Shape Flat Fan ,Wide Angle ,Round Packing Two Pieces /Plastic Box Transport Package Standard Export Carton Specification CE, ISO Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 500PCS Per DayProduct Description

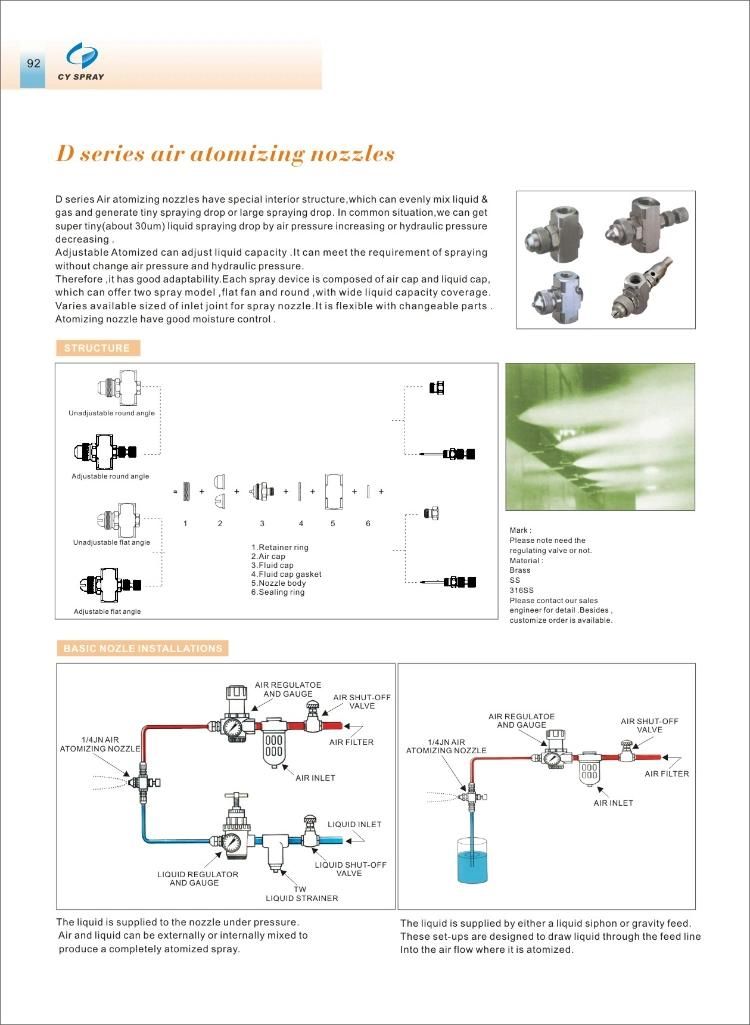

D Series Siphon Nozzle
Specifications Siphone Air Atomizing Nozzle
1. Application: Humidty, Cooling and Dust Control
2. Spray Pattern: Full Cone and Flat Fan
Adjustable Air Atomizing Nozzle
1. Application: Humidty, Cooling and Dust Control
2. Spray Pattern: Full Cone and Flat Fan
3. Adjustable: Sipone Type
4. Air Atomizing Nozzle: Siphon-fed Round
5. Siphon-fed Round type: Internal Mix, Full Cone, Adjustable, Air atomizing, Mixing Air and Water
6. Pressure-fed type: Internal Mix, Flat Fan Nozzles, Air Atomizing Spray Nozzles, Mixed Air Atomizing Nozzles and Adjustable
7. Material: 316Stainless Steel, PP, PVC, Telflon, Brass
Design Feature:
Mixed Air Atomizing Nozzles,
Adjustable and fixed air atomizing nozzle,
Atomizing Nozzle, Air Atomizing Nozzles, Mixed Atomizing Nozzle, Misting
Common application:
Lowest flow available
Very fine atomization
Narrow spray angle (12° To 22° )
Full cone pattern
Short to moderate forward spray projection
