40 Degree One Boron Carbide Core Curved Sand Blast Nozzle
CY Spraying & Purification Technology Limited- Jacket Material：B4c
- Bore Material：Silicone Carbide ,Boron Carbide
- Thread Size：Coarse Thread Size and Fine Thread Size
- Condition：New
- Transport Package：Standard Export Carton
- Specification：CE, ISO
Base Info
- Trademark：CY SPRAY
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Basic Info.
Trademark CY SPRAY Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per DayProduct Description

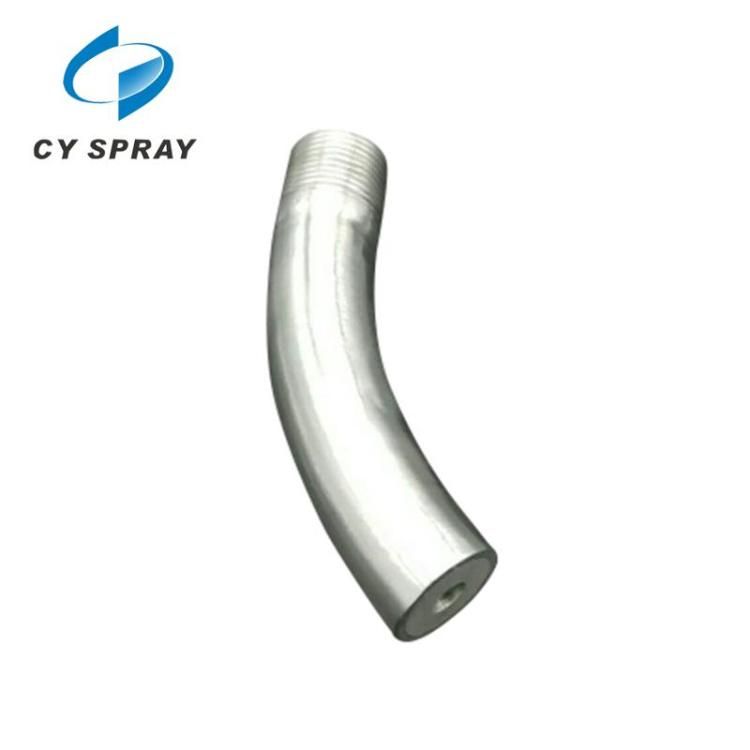

40 Degree One Boron Carbide Core Curved Sand Blast Nozzle
Specification:Density> =2.48g/cm3;
Hardness> =3500kgf/sqm, bending resistance: ≥ 400Mpa
Melting point: 2450degree
Woking conditions:High temperature, high pressure, grinding, acid and alkali
Material :Bore carbide ,Silicon, Tungsten carbide
The size can be customized as per drawing
Jacket type: Aluminum,MS,Nylon jackets,Stainless Steel
Approximate Nozzle Service Life in Hours :
| Nozzle material | Steel Shot and Grit | Expendable Abrasives | Aluoxide Abrasives |
| Alumina | 20-40 | 10-30 | 1-4 |
| Tungsten Carbide | 500 - 800 | 300 - 400 | 20-40 |
| Silicon carbide | 600-1000 | 400-600 | 50-100 |
| Boron Carbide | 1500 - 2500 | 750 - 1500 | 200 -1000 |
45 degree banana nozzles size
| Material | Shape | Bore Dia | Thread | Length |
| CY45-BA8 | Banana 45 degree | 8mm | 1-1/4" fine thread | 130 |
| CY45-BA9.5 | Banana 45 degree | 9.5mm | 1-1/4" fine thread | 130 |
| CY45-BA11 | Banana 45 degree | 11mm | 1-1/4" fine thread | 130 |
| CY45-BA8-50 | Banana 45 degree | 8mm | 50mm contractor thread | 130 |
| CY45-BA9.5-50 | Banana 45 degree | 9.5mm | 50mm contractor thread | 130 |
| CY45-BA11-50 | Banana 45 degree | 11mm | 50mm contractor thread | 130 |
