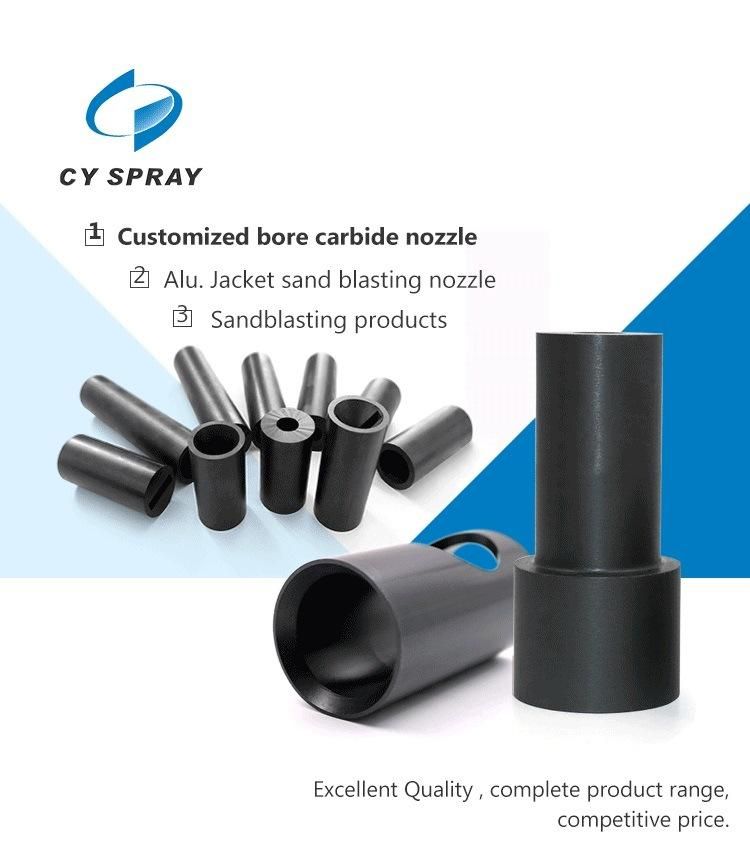

Bj Nylon Jacket Silicon Carbide Blast Nozzle for Sand Blasting Machine
CY Spraying & Purification Technology Limited- Jacket Material：Alu.
- Bore Material：Silicone Carbide ,Boron Carbide
- Thread Size：Coarse Thread Size and Fine Thread Size
- Transport Package：Standard Export Carton
- Specification：CE, ISO
- Trademark：CY SPRAY
Base Info
- Model NO.：BJ
- Origin：Dong Guan, China
- HS Code：84249090
- Production Capacity：1000PCS Per Day
Description
Basic Info.
Model NO. BJ Origin Dong Guan, China HS Code 84249090 Production Capacity 1000PCS Per DayProduct Description
Bj Nylon Jacket Silicon Carbide Blast Nozzle for Sand Blasting Machine
Specification:Density> =2.48g/cm3;
Hardness> =3500kgf/sqm, bending resistance: ≥ 400Mpa
Melting point: 2450degree
Woking conditions:High temperature, high pressure, grinding, acid and alkali
Material :Bore carbide ,Silicon, Tungsten carbide
The size can be customized as per drawing
Jacket type: Aluminum,MS,Nylon jackets,Stainless Steel
Approximate Nozzle Service Life in Hours :
| Nozzle material | Steel Shot and Grit | Expendable Abrasives | Aluoxide Abrasives |
| Alumina | 20-40 | 10-30 | 1-4 |
| Tungsten Carbide | 500 - 800 | 300 - 400 | 20-40 |
| Silicon carbide | 600-1000 | 400-600 | 50-100 |
| Boron Carbide | 1500 - 2500 | 750 - 1500 | 200 -1000 |
Parameter:
| Part Number | Bore Diameter | Exit | Length |
| CY-17830B | 4.8mm | 9mm | 140mm |
| CY-17840B | 6.4mm | 10.5mm | 140mm |
| CY-17850B | 7.9mm | 12mm | 145mm |
| CY-17860B | 9.5mm | 14mm | 170mm |
| CY-17870B | 11.1mm | 15mm | 195mm |
| CY-17880B | 12.7mm | 17mm | 225mm |
| CY-17841B | 4.8mm | 7.5mm | 150mm |
| CY-17851B | 6.4mm | 9.5mm | 150mm |
| CY-17861B | 7.9mm | 11.1mm | 150mm |
| CY-17871B | 9.5mm | 12.7mm | 150mm |
| CY-17881B | 12.7mm | 15mm | 150mm |
