• Model NO.：PL
• Color：Multi-Colored
• Working Load Limit：55.4t
• Colour：Black
• Grade：80
• Chain Dia Size：4mm-26mm
• Transport Package：Wooden Case, Steel Drum
• Specification：CE GS ISO9001
• Trademark：HAIYAN
• Origin：Baoding China
• HS Code：731582000
• Production Capacity：1000000m,Year

Basic Info.

Model NO. PL Color Multi-Colored Working Load Limit 55.4t Colour Black Grade 80 Chain Dia Size 4mm-26mm Transport Package Wooden Case/ Steel Drum Specification CE GS ISO9001 Trademark HAIYAN Origin Baoding China HS Code 731582000 Production Capacity 1000000m/Year

Product Description

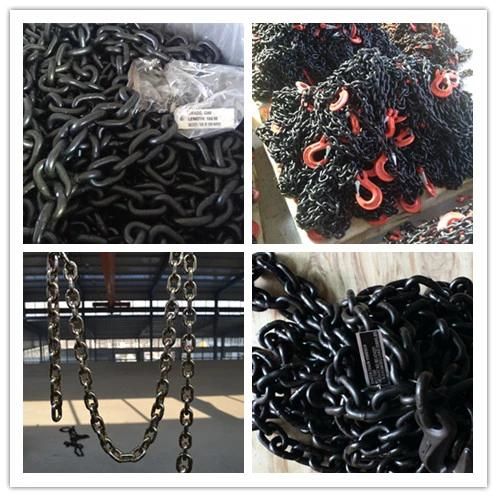

Factory Supply 19mm steel Black load ChainProduction info as belows:

Factory Supply 19mm Steel Black Load Chain

Size: 6mm-42mm

Material: Alloy steel,

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Color: Self color, black

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

The chains technical specifications as belows:

Size(mm)	Inside Width(mm)	Outside Width(mm)	Approx Weight KG/M	W.L.L. Ton	Test Load KN	B.L. KN
6 x 18	7.5	21.0	0.79	1.1	27	45.2
7 x 21	9.0	24.5	1.07	1.5	37	61.6
8 x 24	10.0	28.0	1.38	2.0	48	80.4
10 x 30	12.5	35.0	2.20	3.2	76	125
12 x 36	15.0	42.0	3.10	4.6	109	181
13 x 39	16.3	46.0	3.80	5.0	128	214
16 x 48	20.0	56.0	5.63	8.0	192	320
16 x 49	24.5	59.5	5.71	8	192	320
18x54	23	63	6.85	10	246	410
19x57	23.7	63.5	7.7	11.3	270	450
20x60	25	70	8.6	12.5	300	500
22x66	28	77	10.2	15.3	366	610
26x78	35	91	14.87	21.3	510	850
30x90	38	105	19.6	28.3	678	1130
32x96	40	106	22.29	32.2	772	1286

Factory pic as belows:

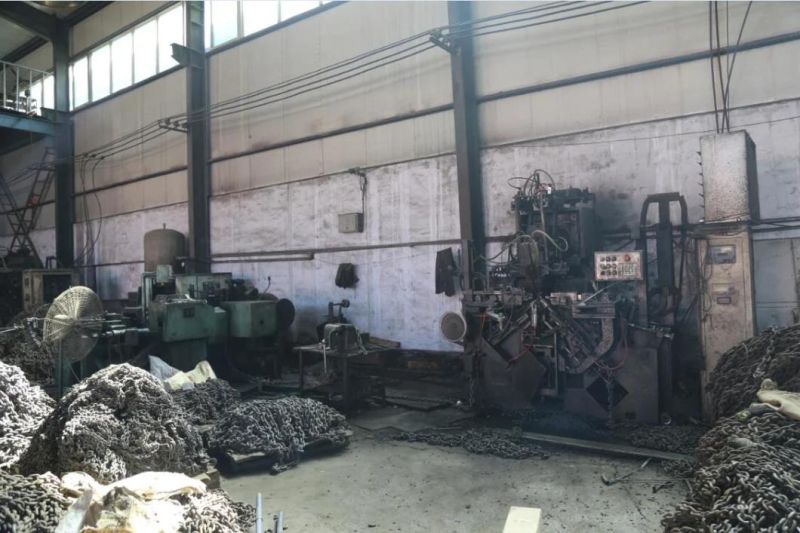

Welding machine:

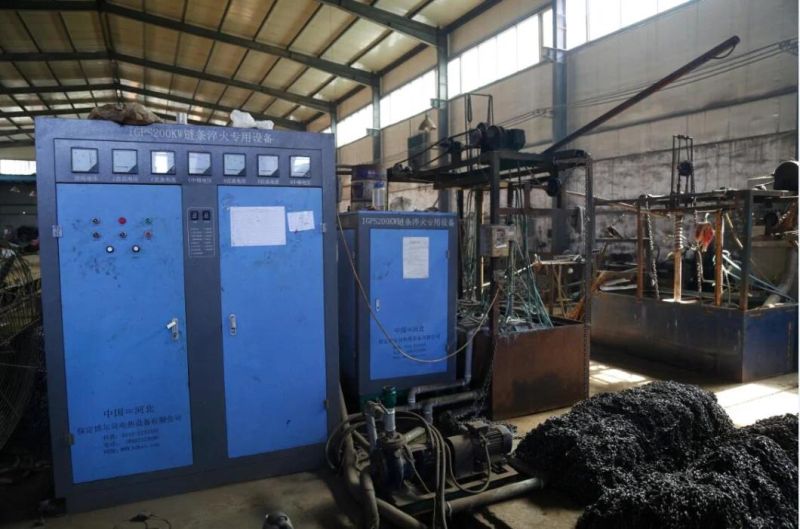

Heat treatment:

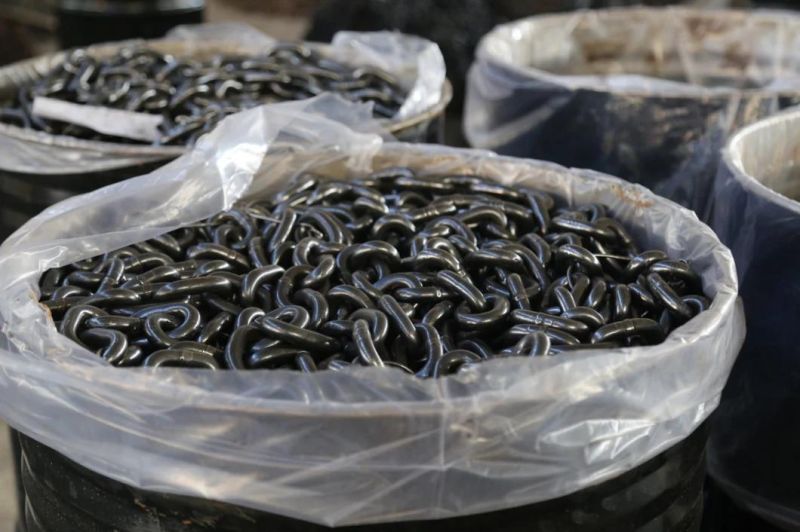

Packing pic as belows:You can select gunny bag, ton bag, wooden case or iron drum packing



For any inquiry please feel free to contact us 008615930701937
