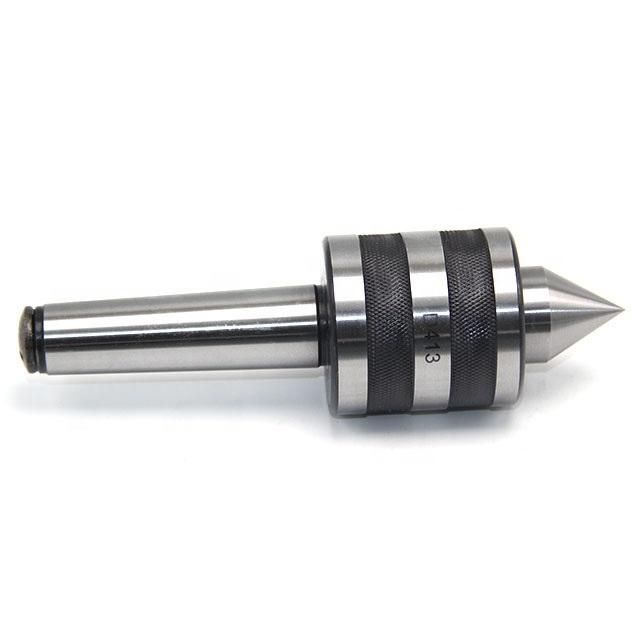

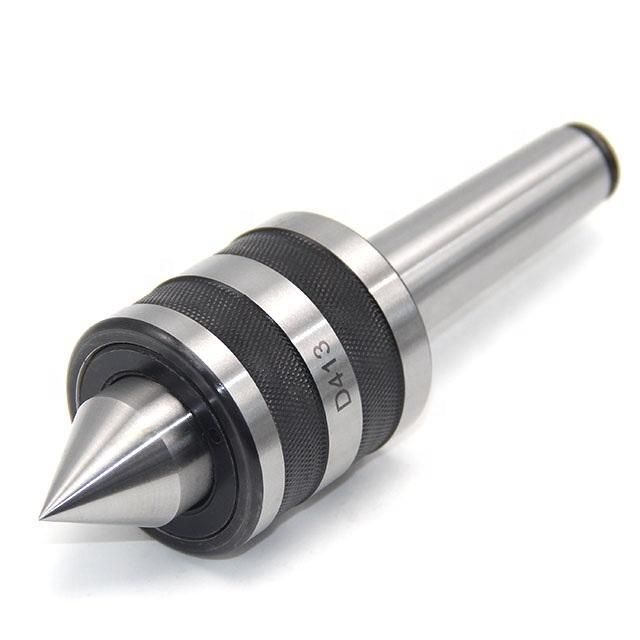

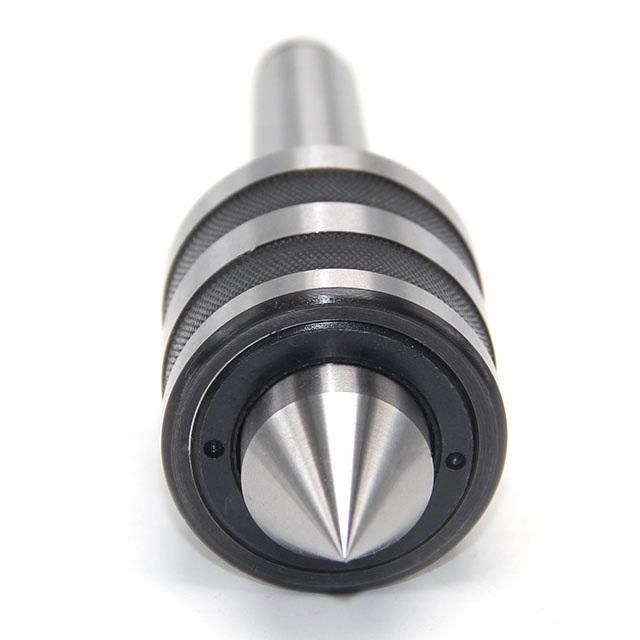

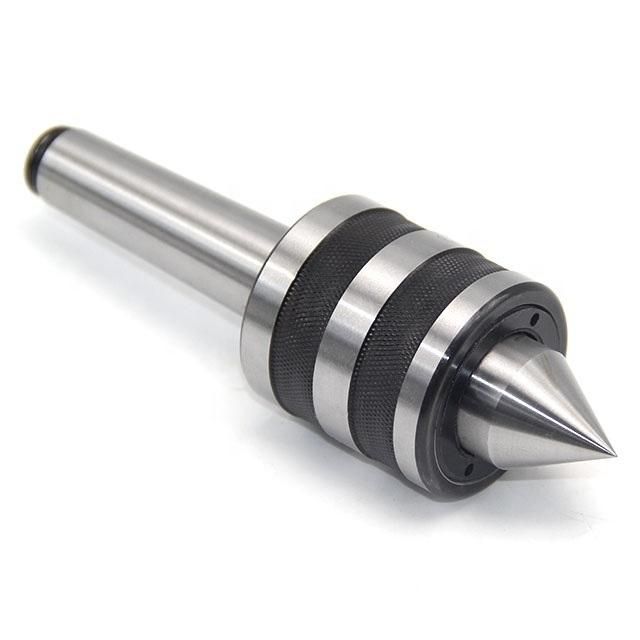

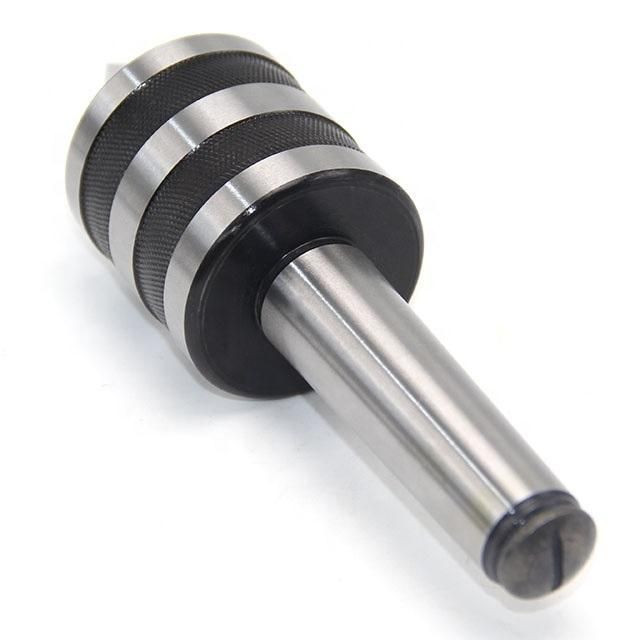

Carbide Medium-Duty Live Center Lathe Center
Qingdao Tide Machine Tool Supply Co., Ltd.- Transport Package：Carton
- Trademark：OEM
- Origin：China
Base Info
- Model NO.：251-37
- HS Code：8466100000
- Production Capacity：1000PCS,Month
Description
Basic Info.
Model NO. 251-37 HS Code 8466100000 Production Capacity 1000PCS/MonthProduct Description

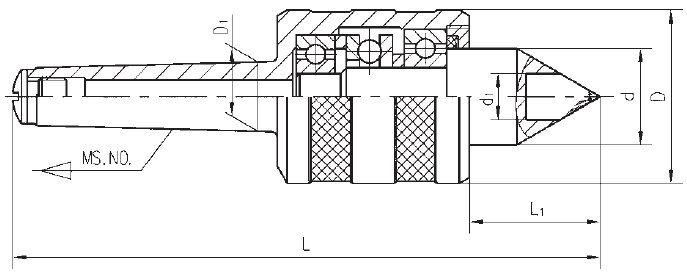

| Morse Taper | L (mm) | D (mm) | L1 (mm) | d (mm) | D1 (mm) | d1 (mm) | Max. Radial Load (N) | Max. Speed (rpm) | Accuracy (mm) | Model No. |
| MT2 | 145 | 45 | 26 | 25 | 17.78 | 12 | 1500 | 5000 | 0.01 | 251-3722 |
| MT3 | 170 | 52 | 30 | 28 | 23.825 | 15 | 2000 | 4200 | 0.01 | 251-3723 |
| MT4 | 205.7 | 60 | 34.7 | 32 | 31.267 | 18 | 3200 | 3200 | 0.01 | 251-3724 |
| MT5 | 254 | 77 | 45 | 45 | 44.399 | 24 | 6300 | 2000 | 0.015 | 241-3725 |
| MT6 | 362 | 125 | 68.5 | 75 | 63.348 | 40 | 10000 | 1600 | 0.015 | 251-3726 |
