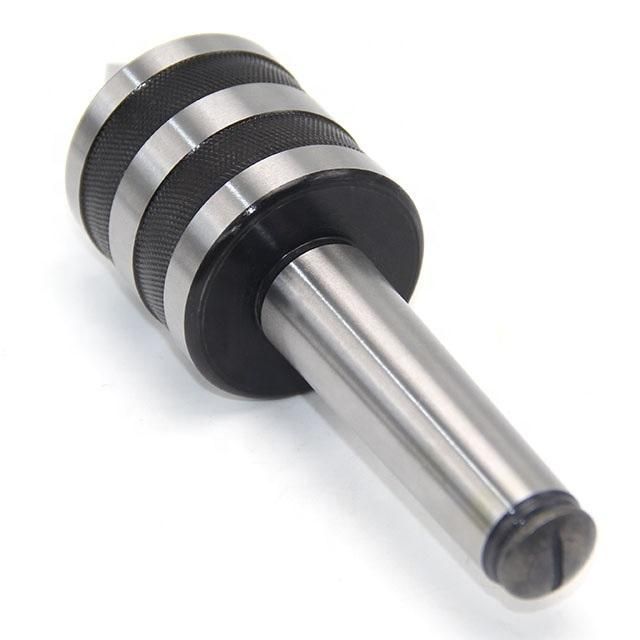

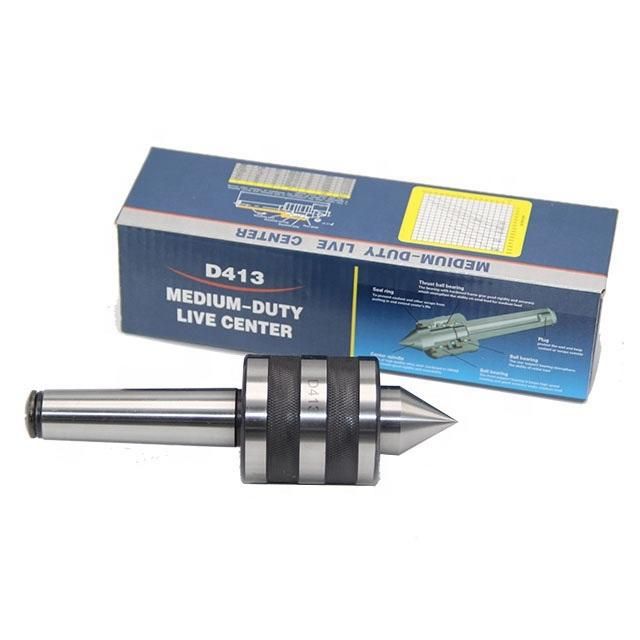

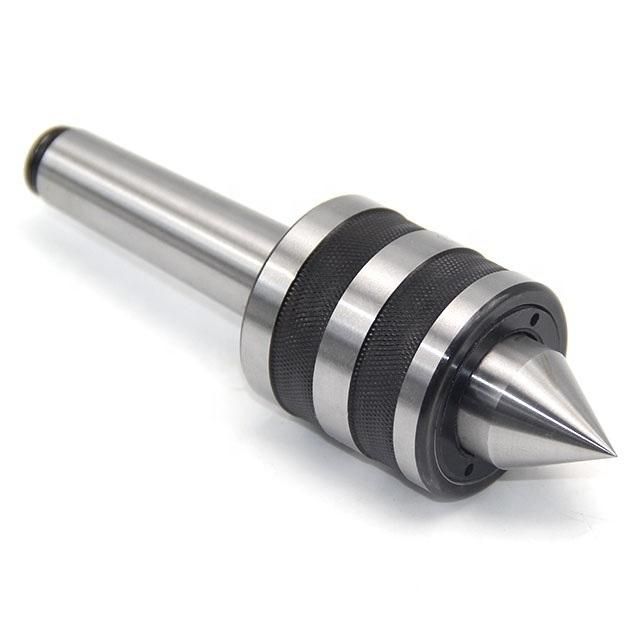

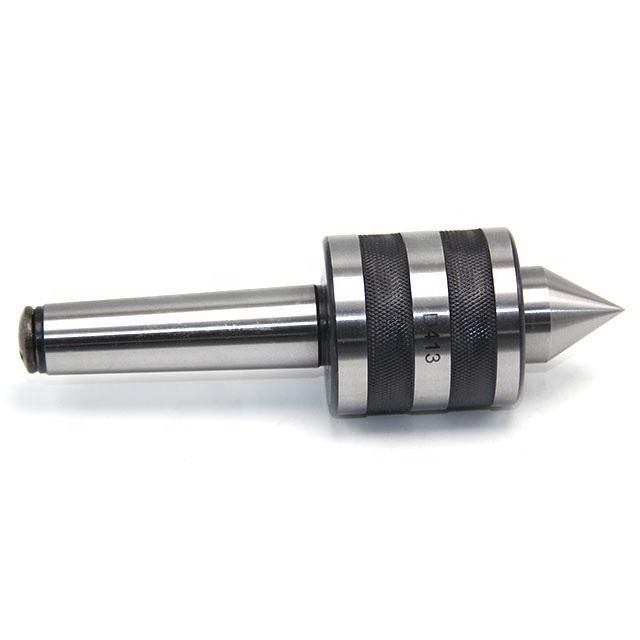

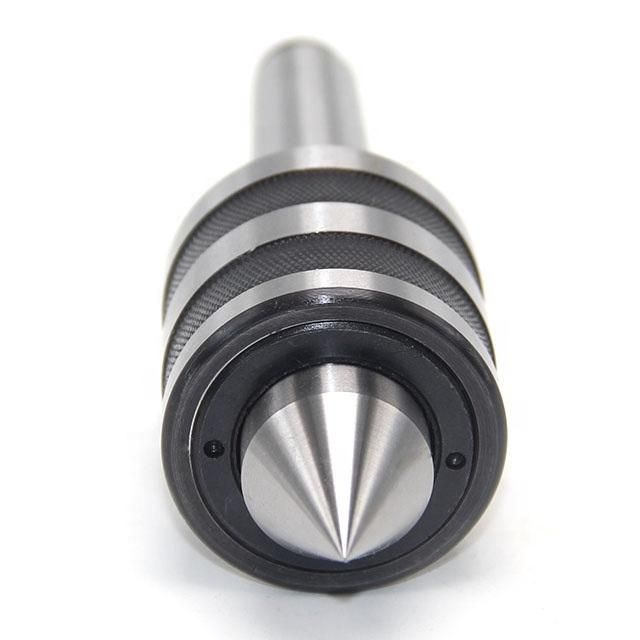

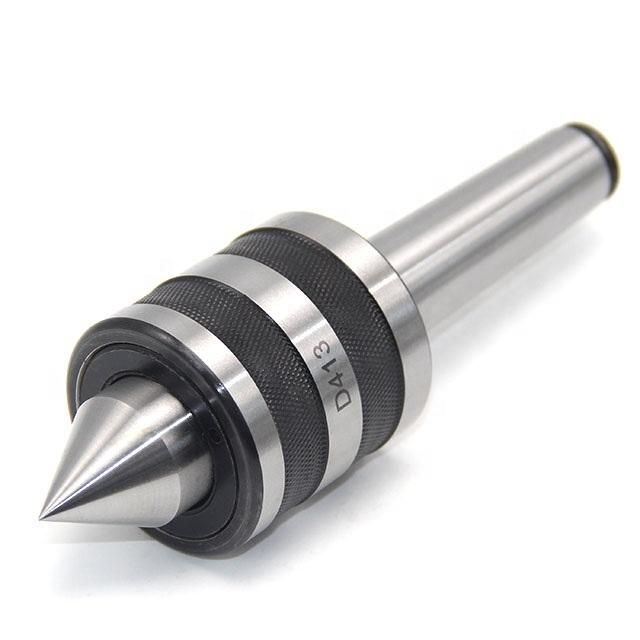

Long Nose Live Center Lathe Center
Qingdao Tide Machine Tool Supply Co., Ltd.- Transport Package：Carton
- Trademark：OEM
- Origin：China
Base Info
- Model NO.：251-30
- HS Code：8466100000
- Production Capacity：1000PCS,Month
Description
Basic Info.
Model NO. 251-30 HS Code 8466100000 Production Capacity 1000PCS/MonthProduct Description
Head-Driving Type for N/C & Copying Lathes• Usable at high speeds-3,000 RPM on MT3, MT4. 2,000 RPM on MT5 and 1500RPM on MT6.
• Run out with in 0.0002".
• Unique head-driving mechanism ensures that no dust, chips, or foreign oils can enter and destroy bearings.

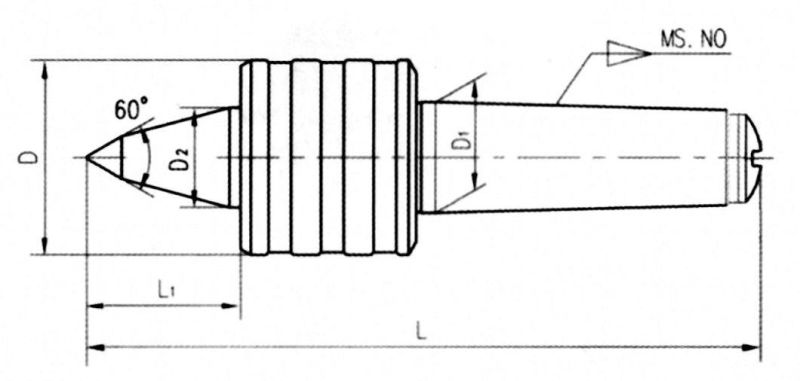

| MT | L1(mm) | D (mm) | D1(mm) | D2(mm) | L (mm) | Model No. |
| MT2 | 30 | 40 | 17.78 | 18 | 141 | 251-3042 |
| MT3 | 36 | 45 | 23.825 | 22 | 165 | 251-3043 |
| MT4 | 36 | 45 | 31.267 | 22 | 188 | 251-3044 |
| MT5 | 64 | 78 | 44.399 | 40 | 270 | 251-3045 |
| MT6 | 75 | 102 | 63.348 | 50 | 346 | 251-3046 |
