Stainless Steel G414 Heavy Duty Thimble
Decorstainless International Co., Ltd.- Material：Stainless Steel 304,316 or Carbon
- Surface Treatment：Highly Polished or Hot Dipped,Electro Galvanized
- Color：Silver
- Design：OEM Services Provided
- Advantage：Fast Delivery
- Drawing：CAD
Base Info
- Model NO.：DECOR
- Brand：Decor
- Size：From 6mm to 35mm
- Certification：SGS&TUV
- Thimble：G414
- Transport Package：Clean Poly Bags Plus Cartons Plus Pallets
- Specification：From 6mm to 35mm
- Trademark：DECOR
- Origin：Made in China
- Production Capacity：1, 000, 000PCS,Month
Description
Product Description
Product Name
Stainless steel wire rope thimble
Material
stainless steel 316 or 304 or carbon
Surface finish
Highly polish or hot dip galvanized or electro galvanized
Color
Nickel White
Type

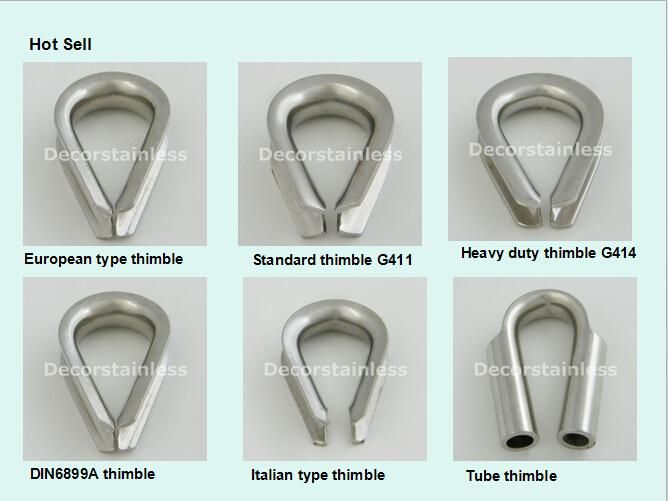

Heavy duty thimble G414, standard thimble G411, European type thimble, Italian type thimble, DIN6899A thimble, tube thimble
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Thread
coarse, fine
Used
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
| Dimension | A | B | C | D |
| (inch) | (mm) | (mm) | (mm) | (mm) |
| 3/16" | 6 | 18 | 34 | 1 |
| 1/4" | 7 | 23 | 41 | 2 |
| 5/16" | 9 | 27 | 47 | 2 |
| 3/8" | 10 | 28 | 51 | 3 |
| 1/2" | 14 | 39 | 67 | 4 |
| 5/8" | 17 | 45 | 76 | 4 |
| 3/4" | 22 | 51 | 97 | 6 |
| 7/8" | 24 | 58 | 104 | 6 |
| 1" | 28 | 65 | 122 | 6 |
| 1-1/8" | 33 | 76 | 149 | 6 |
| 1-1/4" | 35 | 76 | 159 | 5 |
