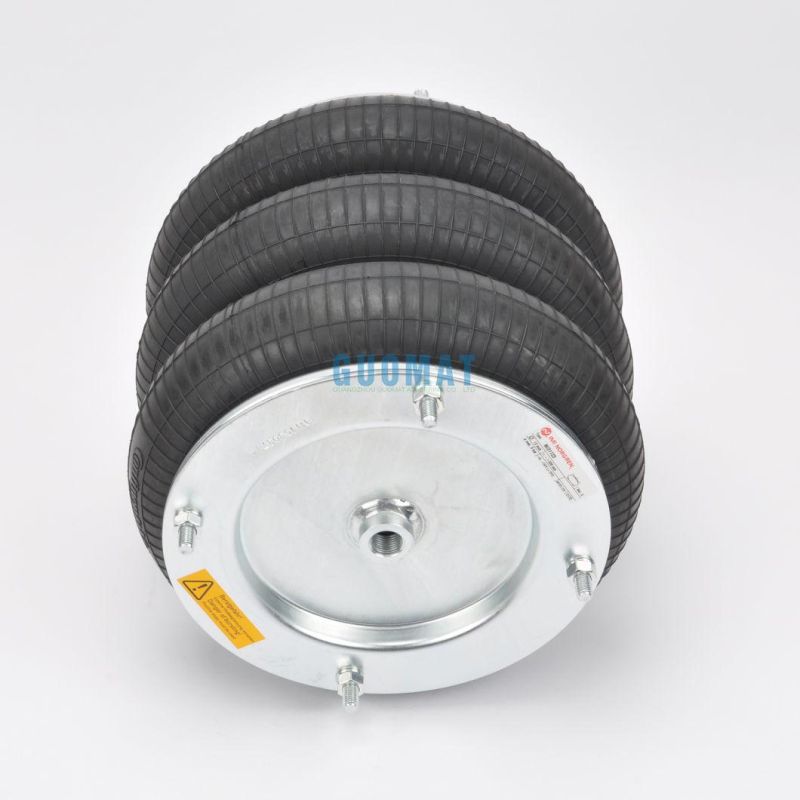

Norgren Air Spring M/31123 Industrial Machine Air Spring Steel Rubber Bellows 12"X3 Triple Convoluted Air Bag

Guangzhou Guomat Auto Parts Co., Ltd.
  • Function：Damping
  • Material：Rubber and Iron
  • Load Type：Compression
  • Production Process：Vulcanization and Crimping
  • Shape：Cylinder
  • N.W.：6.5 Kg

Base Info

  • Model NO.：M,31123
  • Warranty：One Year
  • Pressure Ability：0.2-0.8 M PA
  • Bumper：Without
  • Air Inlet：G1,2
  • Top Plate Hole/Stud：M10
  • Bottom Plate Hole/Stud：M10
  • Top Plate Dia：260 mm
  • Bottom Plate Dia：260 mm
  • Transport Package：Cartons
  • Specification：33*33*22 cm
  • Trademark：Norgren
  • Origin：Europe
  • HS Code：8708809000
  • Production Capacity：5000PCS,Month

Description

Model No:M/31061M/31062M/31081M/31082M/31101M/31102M/31103M/31121M/31122          Nominal ø (inch) x convolutions6 X 16 X 28 X 18 X 210 X 110 X 210 X 312 X 112 X 2          Maximum Stroke (mm)5511580175100225330100225          Port SizeG1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2Model No:M/31123M/31141M/31142M/31143M/31162M/31163M/31212M/31262           Nominal ø (inch) x convolutions12 X 314 ½ X 114 ½ X 214 ½ X 316 X 216 X 321 X 226 X 2           Maximum Stroke (mm)330125265380315430280410           Port SizeG1/2G1/2G1/2G1/2G1/2G1/2G3/4G3/4
